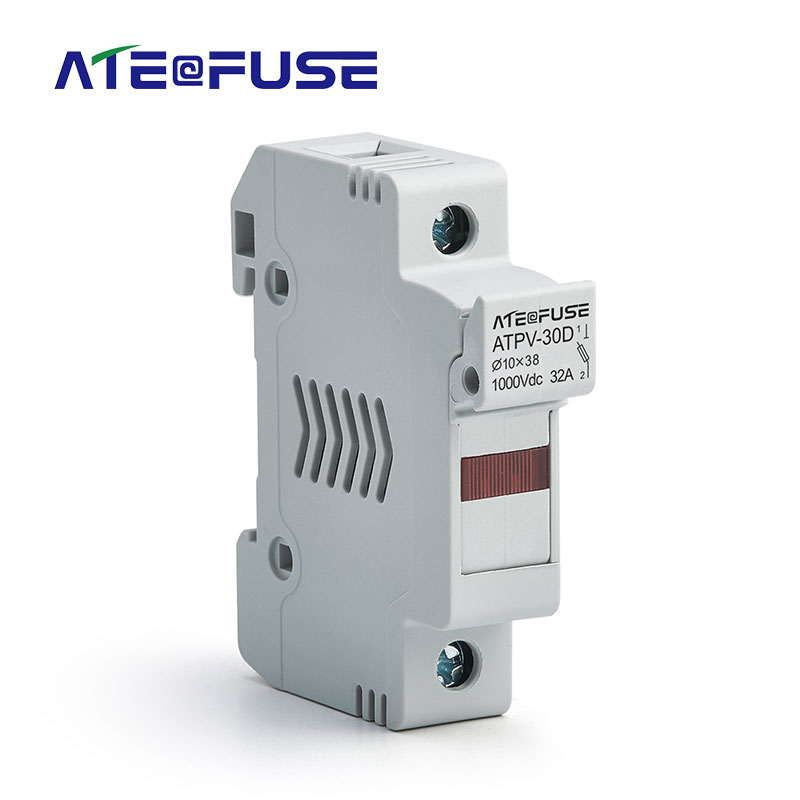

ATPV-30D 1000VDC Fuse Base 10x38mm PV Fuse Holder

ATPV-30D 1000VDC Fuse Base 10x38mm PV Fuse Holder was made of the flame-retardant shell with VO standard, and the dead-front design made it possible to match the busbar mounting in the Photovoltaic (PV) system.
ATPV-30D 1000VDC 10x38mm PV Fuse Holder
ATPV-30D 1000VDC 10x38mm PV Fuse Holder
ATPV-30D 1000VDC 10x38mm PV Fuse Holder
ATPV-30D 1000VDC 10x38mm PV Fuse Holder
DIN Rail Fuse Holder

Features & Benefits

ATPV-30 1000VDC 10x38mm Fuse Link recommended

1000VDC Photovoltaic(PV) system available

32A ampere ratings

Available in 1, 2, 3 and 4-pole configurations

Meets IEC and UL standards for global acceptance TUV, CE

Flame retardant shell with VO standard

Low temperature rise for better performance of the circuit protection

DIN Rail mounting

No fuse pullers or tools required for fuse removal

33kA breaking capacity approved by TUV,CE

Inquiry Download
Share to
Product Details
Production Description

ATPV-30D 1000VDC PV Fuse Holder is also available in 1, 2,3, and 4-pole configurations. The recommended fuse link size is 10x38mm. which can safely protect 1000VDC Photovoltaic (PV)systems.


The ATPV-30D 1000VDC Fuse Base PV Fuse Holder is specifically designed to provide fast-acting protection under overload current conditions associated with Photovoltaic (PV) systems. The most common applications of this ATPV-30D PV Fuse are PV combiner boxes, inverters, and so on.



1000VDC Fuse Link Approvals & Standards

IEC60947-1 and IEC60947-3

UL4248-1 and UL4248-19

GB/T14048.1 and GB/T14048.3



Class of Operation

gPV



1000VDC Fuse Link Applications

• Combiner box

• PV string, PV array protection

• Inverters

• Battery charge controllers

• Re-combiner units

• In-line PV module protection



Recommended Fuse Holder

Do not operate under load

Use 75℃ CU wire only



Country of Origin

People's Republic of China



Technical parameters

Fuse base model No.

Equipped with fuse size

Rated Voltage

Rated Current

Figure no.

Dimensions/Size(mm)

Dissipated power(W)

Remarks

ATPV-30D

10×38

1000Vdc

32A

1

See figure 1

4.5W

Without indicator

ATPV-30DL

10×38

1000Vdc

32A

1

See figure 1

4.5W

With indicator
