1000VDC Photovoltaic Fuse

ATPV-30 1000VDC Solar PV Fuse Link is specifically designed to provide fast-acting protection under overload current conditions associated with Photovoltaic(PV) systems, The cylindrical fuse link standardized size can safely protect 1000VDC Photovoltaic (PV)systems.

10x38mm Fuse Link is available in multiple ampere ratings from 1A to 32A, which helps match specific requirements in various Photovoltaic(PV) applications such as PV combiner boxes, inverters, and so on.

ATPV-63 Solar PV fuse link was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings. 14x51mm cylindrical fuse can protect 1000VDC Photovoltaic (PV) systems safely.

As one of the professional PV fuse factory in China for 20 years, Solar PV Thermal Fuse Link offers multiple ampere ratings from 8A to 63A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems.

ATPV-125 solar photovoltaic fuse measures 22x58mm and safely protects 1000VDC photovoltaic (PV) systems.

Fuse DC 1000V offers multiple ampere ratings from 8A to 125A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems.

ATPV-NH1 1000VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced construction fuse ink with an NH1 standardized size can protect 1000VDC Photovoltaic (PY) systems effectively.

1000V PV Fuse offers various ampere ratings from 32A to 250A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV Combiner box, PV array, PV Inverter DC input.

ATPV-NH1D 1000VDC NH1 PV Fuse is suitable for PV inverter protection and combiner box applications.

● Middle in size has higher ampere ratings, and it also has a high-strength steel plate.

● For safety protection of 1000VDC photovoltaic (PV) systems.

● The NH screw mount is best placed in the cabinet of the Photovoltaic system.

● Specifically designed to protect and isolate Photovoltaic (PV) combiner boxes and other DC systems.

ATPV-NH2 1000VDC Solar PV Fuse Link with Striker offers various ampere ratings from 63A to 400A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV array protection and PV Inverter DC input protection.

ATPV-NH2 1000VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced construction fuse link with an NH2 standardized size can effectively protect 1000VDC Photovoltaic (PV) systems.

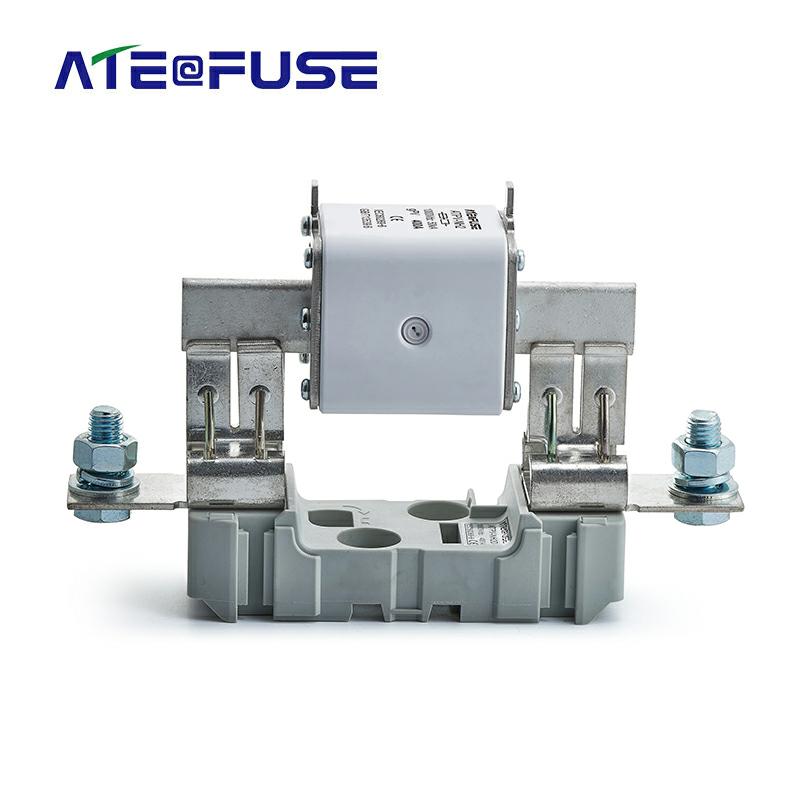

The compact size of the ATPV-NH2D 1000VDC NH2 PV Fuse Holder can save more space and the steel plate enables high strength and durability.

1000VDC Fuse holder is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects to safely protect 1000VDC photovoltaic (PV) systems.

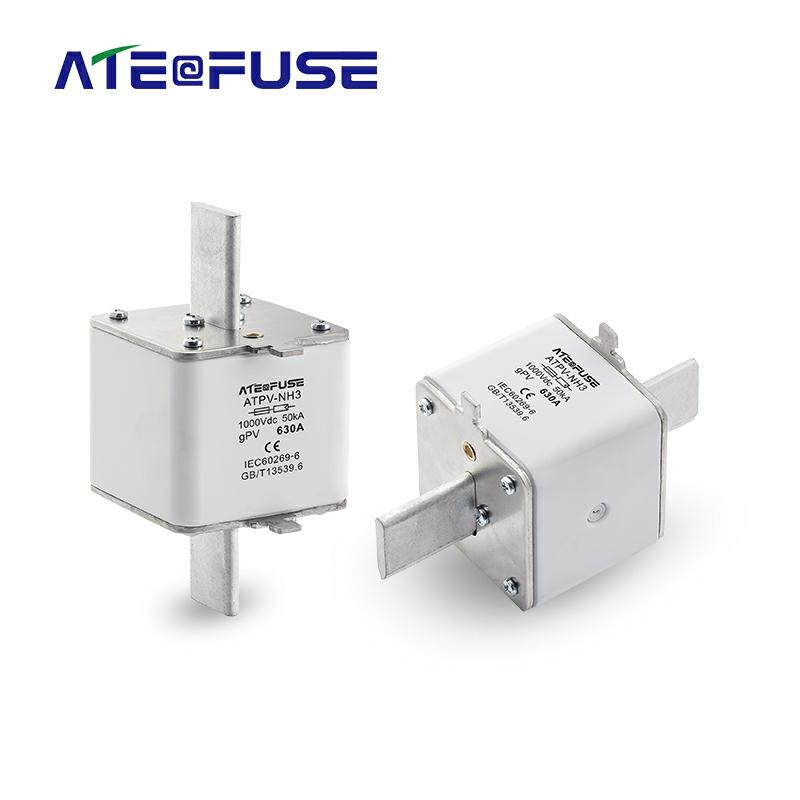

ATPV-NH3 1000VDC Solar PV Fuse Link is connected in series in the circuit and uses the thermal melting properties of metal to cut off the circuit when overcurrent occurs in the equipment to ensure the safe operation of the circuit.

ATPV-NH3 Solar PV Fuse Link offers various ampere ratings from 125A to 630A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV Combiner box, PV array, and PV Inverter DC input.

As a circuit protection device, the 1000VDC photovoltaic fuse is specially designed for photovoltaic circuits. They are characterized by high breaking capacity, high reliability, and stability.

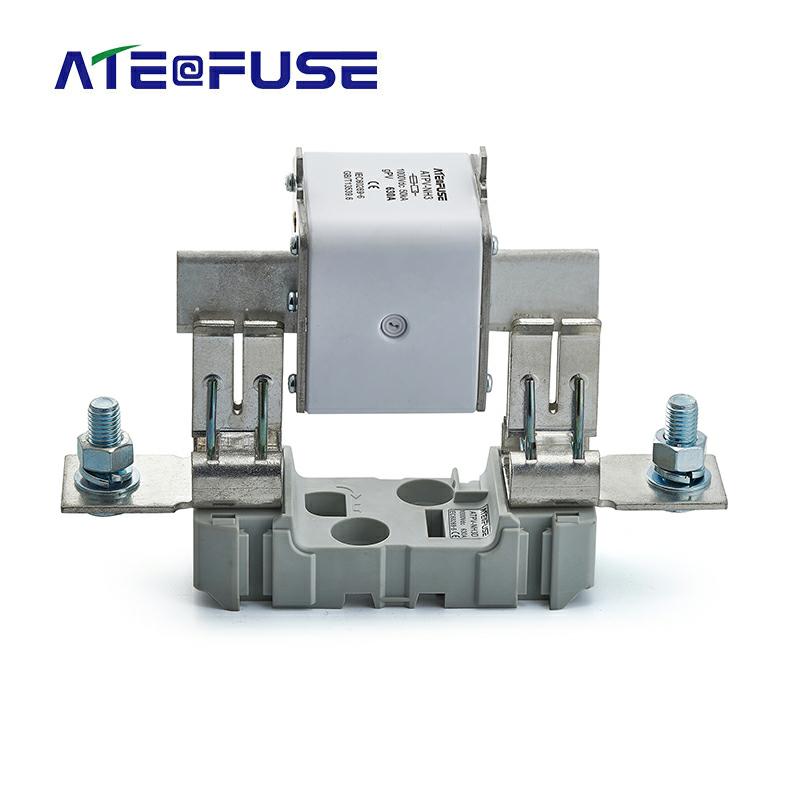

The ATPV-NH3D 1000VDC NH3 PV Fuse Holder is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects.

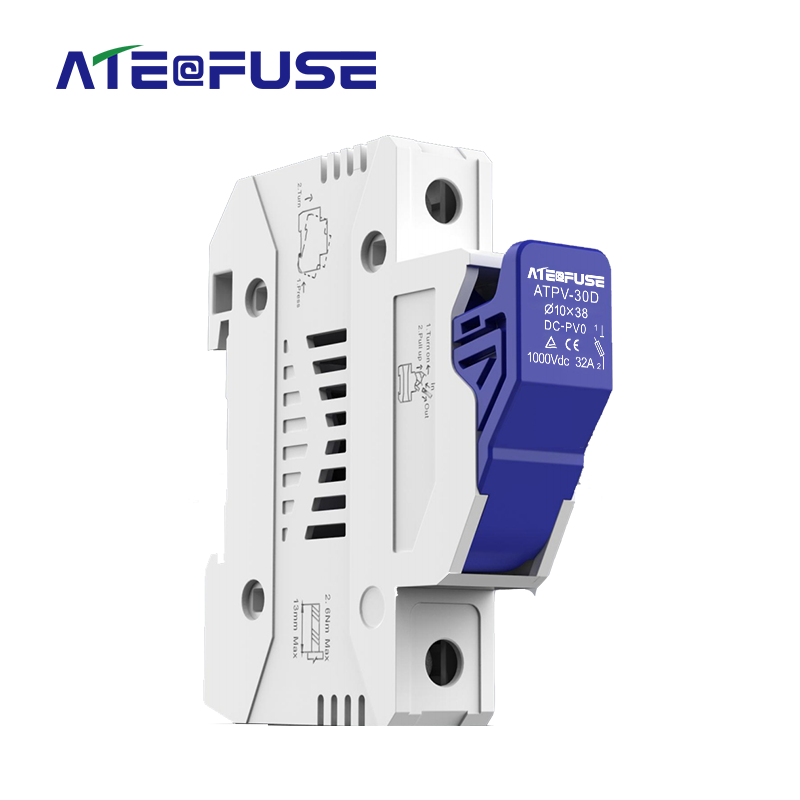

ATPV-30D 1000VDC Fuse Base PV DIN Rail Fuse Holder was made of the flame-retardant shell with VO standard, and the dead-front design made it possible to match the busbar mounting in the Photovoltaic (PV) system.

ATPV-30D 1000VDC PV Fuse Holder is also available in 1, 2,3, and 4-pole configurations. The recommended fuse link size is 10x38mm. which can safely protect 1000VDC Photovoltaic (PV)systems.

The ATPV-30D 1000VDC PV Fuse Holder With Indicator measures 10x38mm and is specifically designed to provide fast protection during overload current conditions associated with photovoltaic (PV) systems.

ATPV-30D PV Fuse Holder is used in photovoltaic combiner boxes, inverters, etc. to safely protect 1000VDC photovoltaic (PV) systems.

In terms of circuit protection, the functions of ATPV-63D 1000VDC PV fuse include overload protection, short circuit protection, and abnormal current isolation.

The ATPV-63D 1000VDC PV fuse holder is 14x51mm, it was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings.

With the rapid development of the solar energy industry, photovoltaic circuits are increasingly used in daily life and industrial production. Aite Electric provides you with a 1000VDC PV Fuse Holder with high-efficiency protection, high reliability, long life, and low power consumption.

The ATPV-125D PV Fuse Holder was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings.
