ATPV-63 1000VDC Solar PV Fuses

ATPV-63 1000VDC Solar PV Fuses was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings. 14x51mm cylindrical fuse can protect 1000VDC Photovoltaic (PV) systems safely.

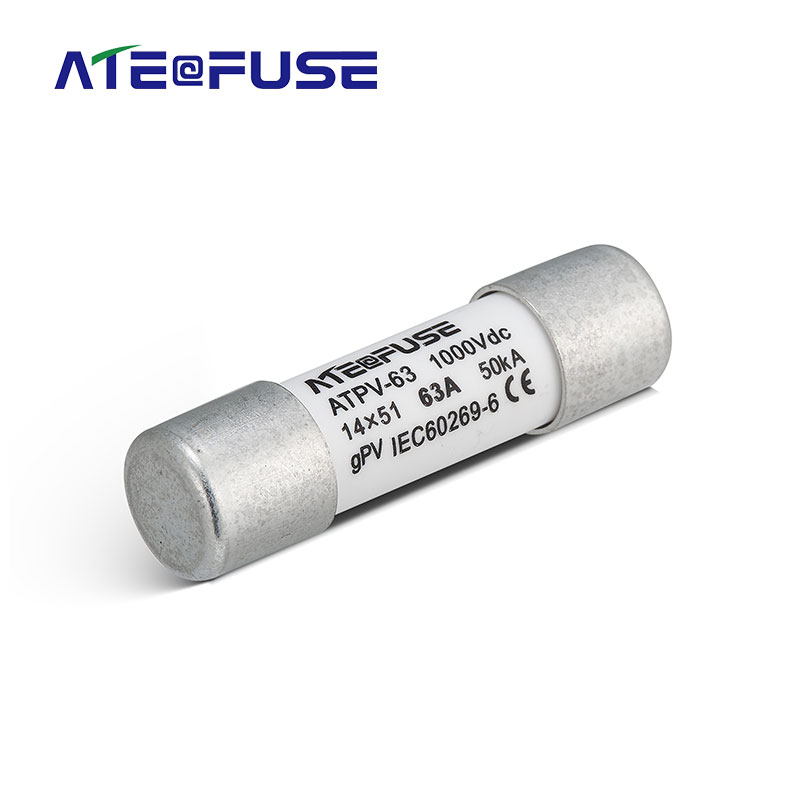

ATPV-63 1000VDC Solar PV Fuse Link
ATPV-63 1000VDC Solar PV Fuse Link
ATPV-63 1000VDC Solar PV Fuse Link
ATPV-63 1000VDC Solar PV Fuse Link
ATPV-63 1000VDC Solar PV Fuse Link

Features & Benefits

8-63A ampere ratings available

1000VDC Photovoltaic (PV) system available

Meets lEC60269-6 standards for global acceptance

Compact cylindrical construction

Low power dissipation and temperature rise features for longer life cycle

DIN Rail mountable

50kA breaking capacity approved by TUV,CE

Inquiry Download
Share to
Product Details
Production Description

Solar PV Thermal Fuse Link offers multiple ampere ratings from 8A to 63A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems.

Zhejiang Aite Electric Technology Co., Ltd. (Aitefuse) is a China professional Solar PV Fuse manufacturer, that aims to provide customers with safer circuit protection.



Fuse cold resistance and power dissipation

Serial number

Rated current (A)

Pre-arcing I2t

Total I2t

1In (W)

1

32

325

2370

6.2

2

35

390

2844

7.5

3

40

450

3300

7.9

4

45

510

3700

8.2

5

50

570

4200

9.0

6

55

630

4600

10.0

7

60

690

5100

10.0

8

63

710

5200

11.0



Solar PV Thermal Fuse Link Dimension(mm)



Solar PV Fuse Link Technical parameters

Fuse type

Rated Voltage (V)

Rated Current (A)

Dimensions/Size (mm)

Dissipated power (W)

gPV

Figure No.

D×L

ATPV-63

DC1000V

15、16、20、25、30、32、35、40、45、50、55、63

1

14×51

≤12



Time-Current Characteristic

rated current (A)

Standard: IEC60269-6

Standard: UL248-19

105%

135%

135%

200%

In≤30

>1h non fusing

<1h fusing

<1h fusing

12-240s

30<In≤60

>1h non fusing

<1h fusing

<1h fusing

12-360s

60<In≤100

>1h non fusing

<1h fusing

<1h fusing

0-480s



Melting characteristic curve

Recommended Fuse Holder

Without indicator: ATPV-63D 14 x 51

With indicator: ATPV-63D 14 x 51X



15A 1000V DC Fuse Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6



Class of Operation

gPV



DC Fuse 15A 1000V Applications

• Combiner box

• PV string, PV array protection

• Inverters

• Battery charge controllers

• Re-combiner units

• In-line PV module protection



Country of Origin

People's Republic of China
