ATPV-125 1000VDC Solar System Fuse

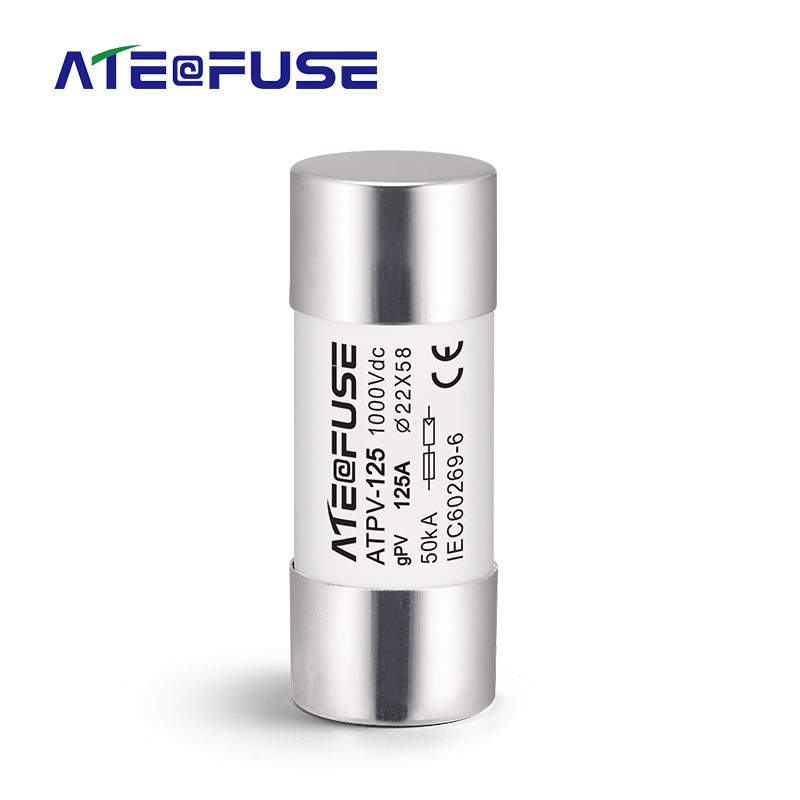

ATPV-125 1000VDC Solar System Fuse measures 22x58mm and safely protects 1000VDC photovoltaic (PV) systems.
ATPV-125 1000VDC Solar PV Fuse Link
ATPV-125 1000VDC Solar PV Fuse Link
ATPV-125 1000VDC Solar PV Fuse Link
ATPV-125 1000VDC Solar PV Fuse Link

Features & Benefits

8-125A ampere ratings available

Low power dissipation and temperature rise features for longer life cycle

Meets lEC60269-6 standards for global acceptance

50kA breaking capacity approved by TUV,CE

1000VDC Photovoltaic (PV) system available

Compact cylindrical construction

DIN Rail mountable

Inquiry Download
Share to
Product Details
Production Description

Fuse DC 1000V offers multiple ampere ratings from 8A to 125A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems.

Zhejiang Aite Electric Technology Co., Ltd. (Aitefuse)is a solar photovoltaic fuse manufacturer and PV Fuse Factory in China with more than 20 years of experience, aiming to provide customers with safer circuit protection.



Fuse cold resistance and power dissipation

Serial number

Rated current(A)

Pre-arcing I2t

Total I2t

1In(W)

1

32

325

2370

6.2

2

35

390

2844

7.5

3

40

450

3300

7.9

4

45

510

3700

8.2

5

50

570

4200

9.0

6

55

630

4600

10.0

7

60

690

5100

10.0

8

63

710

5200

11.0

9

65

720

5300

12.0

10

70

800

5900

12.0

11

75

850

6500

12.0

12

80

950

6720

12.0

13

100

1190

8500

15.0

14

125

1350

12100

17.0



125A Fuse Link Dimension(mm)



Technical parameters

Fuse type

Rated Voltage (V)

Rated Current (A)

Dimensions/Size (mm)

Dissipated power (W)

gPV

Figure No.

D×L

ATPV-125

DC1000V

15、16、20、25、30、32、35、40、45、50、55、63、65、70、75、80、90、100、110、125

1

22×58

≤18



Time-Current Characteristic

rated current (A)

Standard:IEC60269-6

Standard:UL248-19

105%

135%

135%

200%

In≤30

>1h non fusing

<1h fusing

<1h fusing

12-240s

30<In≤60

>1h non fusing

<1h fusing

<1h fusing

12-360s

60<In≤100

>1h non fusing

<1h fusing

<1h fusing

0-480s

100<In≤200

>1h non fusing

<1h fusing

<1h fusing

0-600s



Melting characteristic curve



Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6



Class of Operation

gPV



125A Fuse Link Applications

• Combiner box

• PV string, PV array protection

• Inverters

• Battery charge controllers

• Re-combiner units

• In-line PV module protection

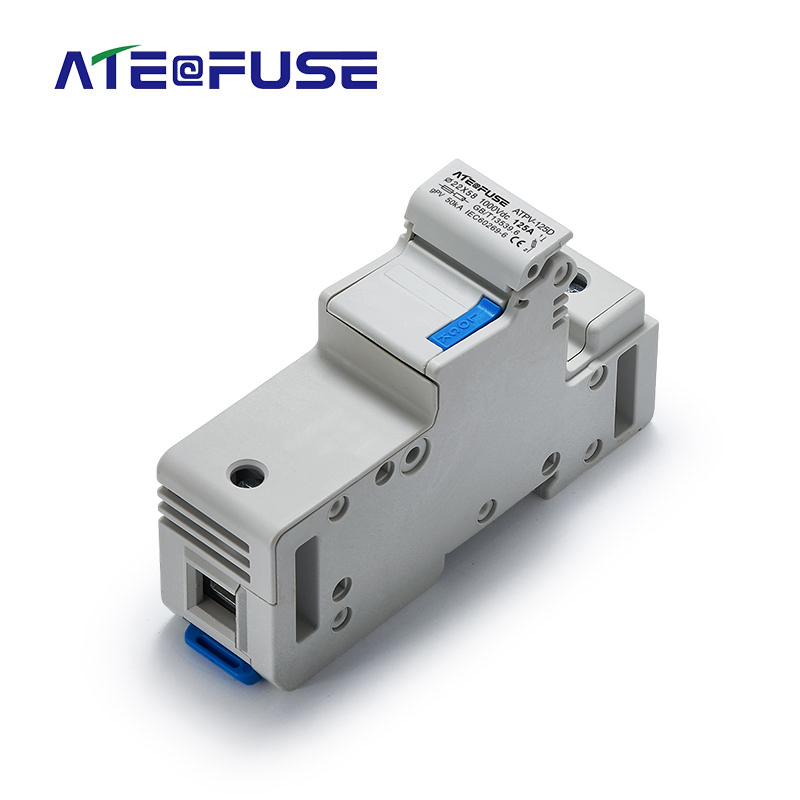

Recommended Fuse Holder

Without indicator:ATPV-125D 22x 58

With indicator:ATPV-125D 22 x 58X



Country of Origin

People's Republic of China
