ATPV-NH2 1000VDC Solar PV In-Line Fuse

ATPV-NH2 1000VDC Solar PV In-Line Fuse with Striker offers various ampere ratings from 63A to 400A, which helps to match specific situations in different Photovoltaic (PV) applications, such as PV array protection and PV Inverter DC input protection.
ATPV-NH2 1000VDC Solar PV Fuse Link
ATPV-NH2 1000VDC Solar PV Fuse Link
ATPV-NH2 1000VDC Solar PV Fuse Link
ATPV-NH2 1000VDC Solar PV Fuse Link

Features & Benefits

1000VDC Photovoltaic (PV) system available

63-400A ampere ratings available

Meets IEC60269-6 standard for global acceptance

Standardized NH2 construction

Low power dissipation design for high energy efficiency

NH screw mountable

50kA breaking capacity

Striker and microswitch available

Inquiry Download
Share to
Product Details
Production Description

ATPV-NH2 1000VDC Solar PV Fuse Link is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and DC disconnects. This enhanced construction fuse link with an NH2 standardized size can effectively protect 1000VDC Photovoltaic (PV) systems.

Zhejiang Aite Electric Technology Co., Ltd.(AITE)is developing new Solar PV Fuse products constantly to meet the emerging needs of the Photovoltaic (PV) industry.



1000V DC Fuse Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6



Class of Operation

GPV Fuse Link



Photovoltaic Fuse Link Applications

• Combiner box

• PV array protection

• Inverters

• Re-combiner units

• In-line PV module protection



Recommended Fuse Holder

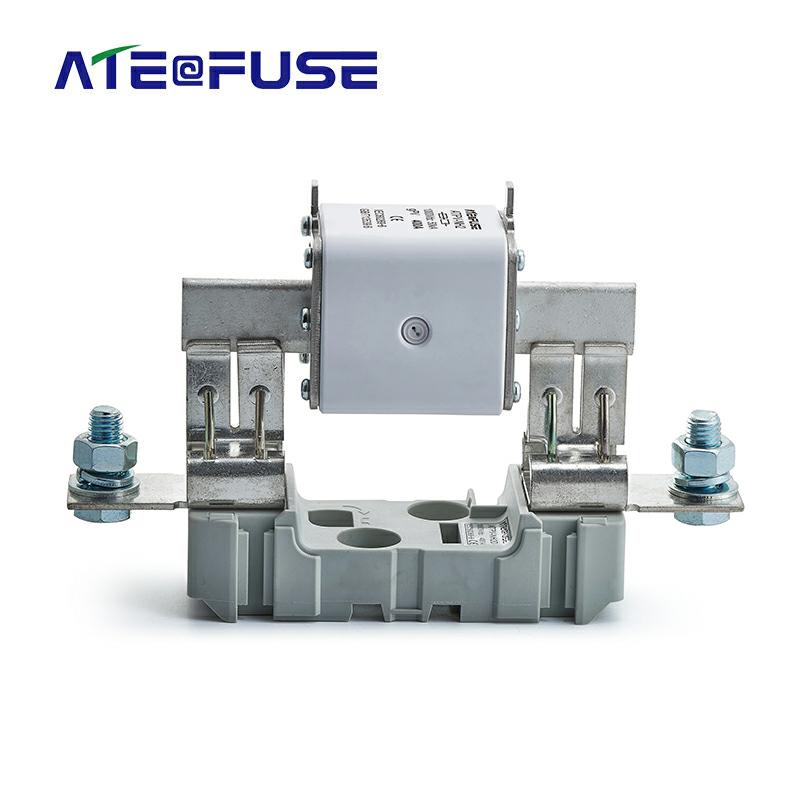

ATPV-NH2D 1000VDC Fuse Base



1000VDC Fuse Link Optional Accessories

• Striker

• Microswitch



Country of Origin

People's Republic of China



Fuse cold resistance and power dissipation

Serial number

Rated current(A)

Pre-arcing I2t

Total I2t

1In(W)

1

63

1361

7652

15

2

80

1819

10228

18

3

100

2394

13458

21

4

125

3150

17708

25

5

160

4244

23859

31

6

200

5584

31394

36

7

250

7347

41308

44

8

315

9750

54800

52

9

350

11560

64995

56

10

400

13720

77090

60

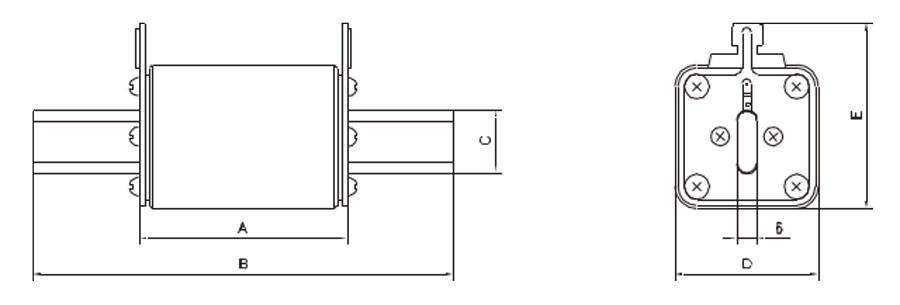

Solar Fuse Holder Dimension(mm)



Technical parameters

Fuse type

Rated Voltage

Rated Current (A)

Dimensions/Size (mm)

gPV

Figure No.

A

B

C

D

E

ATPV-NH2

DC1000V

63、65、70、75、80、90、100、110、125、160、200、250、300、315、350、400

1

68

150

25

58

72



Time-Current Characteristic

rated current (A)

Standard:IEC60269-6

Standard:UL248-19

105%

135%

135%

200%

In≤30

>1h non fusing

<1h fusing

<1h fusing

12-240s

30<In≤60

>1h non fusing

<1h fusing

<1h fusing

12-360s

60<In≤100

>2h non fusing

<2h fusing

<1h fusing

0-480s

100<In≤200

>2h non fusing

<2h fusing

<1h fusing

0-600s

200<In≤400

>3h non fusing

<3h fusing

<1h fusing

0-720s



400A Fuse Link Melting characteristic curve
