ATPV-NH2XL 1500VDC Solar PV Fuse

ATPV-NH2XL 1500VDC Solar PV Fuse is specifically designed for protecting and isolating Photovoltaic(PV)array combiners and DC disconnects,This enhanced construction fuse link with an NH2L standardized size can protect 1500VDC Photovoltaic(PV)systems effectively 1500VDC 400A NH2L Solar PV Fuse Link with Striker offers various ampere ratings from 63A to 400A,which helps to match specific situations in different Photovoltaic (PV) applications, suchas PV array protection, PV Inverter DC input protection. Zhejiang Aite Electric Technology Co., Ltd.(AITE) is developing new Solar PV Fuse products constantly to meet the emerging needs of the Photovoltaic (PV) industry.
ATPV-NH2L 1500VDC Solar PV Fuse Link
ATPV-NH2L 1500VDC Solar PV Fuse Link
ATPV-NH2L 1500VDC Solar PV Fuse Link
ATPV-NH2L 1500VDC Solar PV Fuse Link
ATPV-NH2L 1500VDC Solar PV Fuse Link

Features & Benefits

1500VDC Photovoltaic (PV) system available

63-400A ampere ratings available

Meets IEC60269-6 standard for global acceptance

Standardized NH2L construction

Low power dissipation design for high energy efficiency

NH screw mountable

50kA breaking capacity

Striker and microswitch available

Inquiry Download
Share to
Product Details
Production Description

1500VDC NH2L Solar PV fuse link



Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6



Class of Operation

gPV



Applications

• Combiner box

• PV array protection

• Inverters

• Re-combiner units

• In-line PV module protection

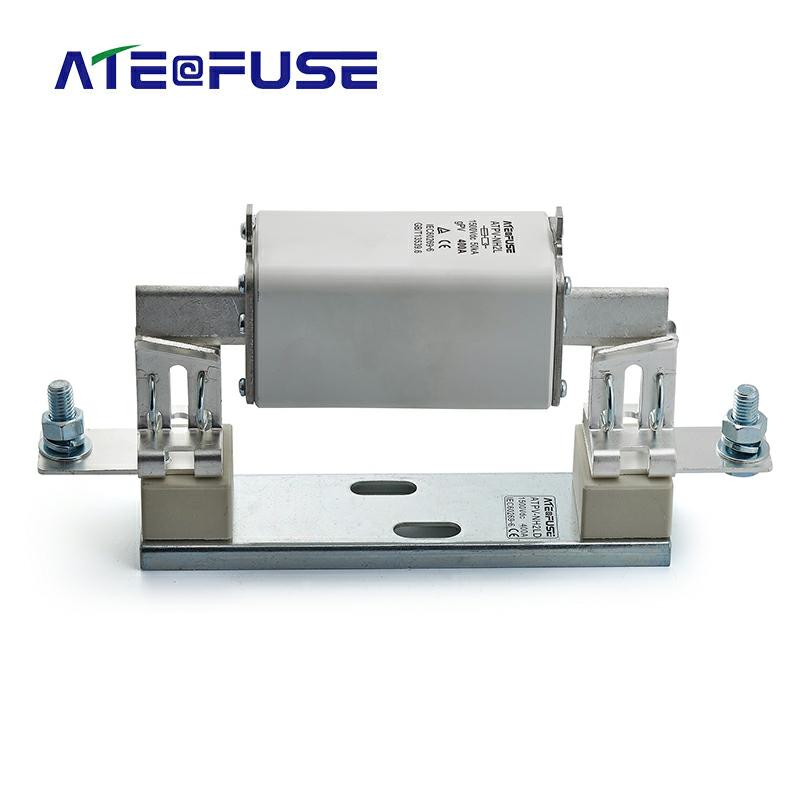

Recommended Fuse Holder

ATPV-NH2LD 1500VDC Fuse Base



Optional Accessories

• Striker

• Microswitch



Country of Origin

People's Republic of China



Fuse cold resistance and power dissipation

Serial number

Rated current(A)

Pre-arcing I2t

Total I2t

1In(W)

1

63

5040

23400

21

2

80

6730

31200

25

3

100

8860

41000

30

4

125

11660

54000

35

5

160

15700

72700

43

6

200

20660

95700

51

7

250

27200

125900

61

8

315

36100

166900

73

9

350

42800

198000

78

10

400

50800

235000

84



Dimension(mm)



Technical parameters

Fuse type

Rated Voltage

Rated Current

 (A)

Dimensions/Size(mm)

gPV

Figure No.

A

B

C

D

E

ATPV-NH2L

DC1500V

63、65、70、75、80、90、100、110、125、160、200、250、300、315、350、400

1

120

202

25

58

72



Time-Current Characteristic

rated current (A)

Standard:IEC60269-6

Standard:UL248-19

105%

135%

135%

200%

In≤30

>1h non fusing

<1h fusing

<1h fusing

12-240s

30<In≤60

>1h non fusing

<1h fusing

<1h fusing

12-360s

60<In≤100

>2h non fusing

<2h fusing

<1h fusing

0-480s

100<In≤200

>2h non fusing

<2h fusing

<1h fusing

0-600s

200<In≤400

>3h non fusing

<3h fusing

<1h fusing

0-720s



Melting characteristic curve
