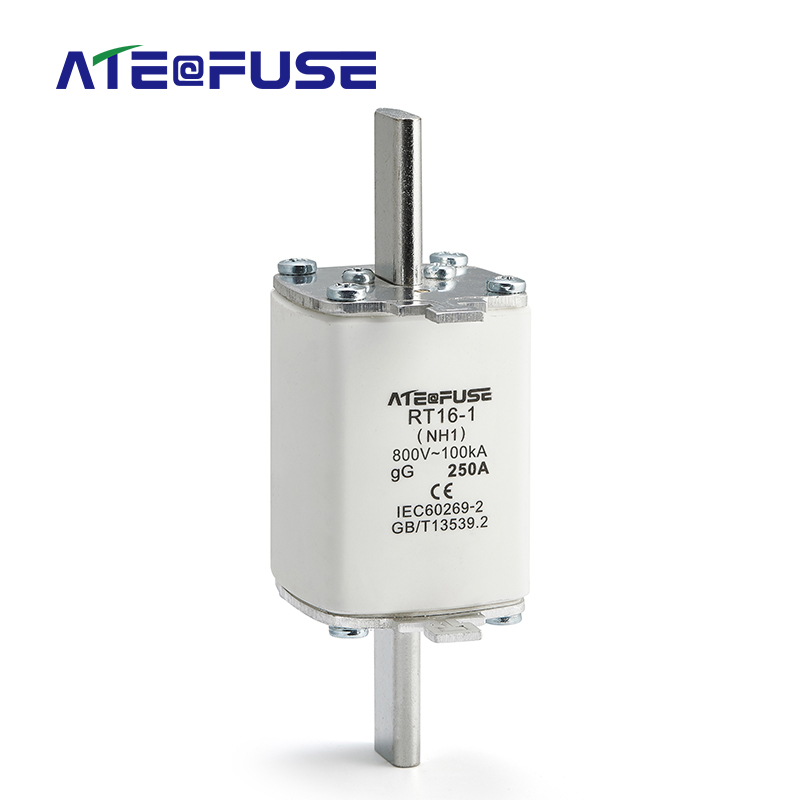

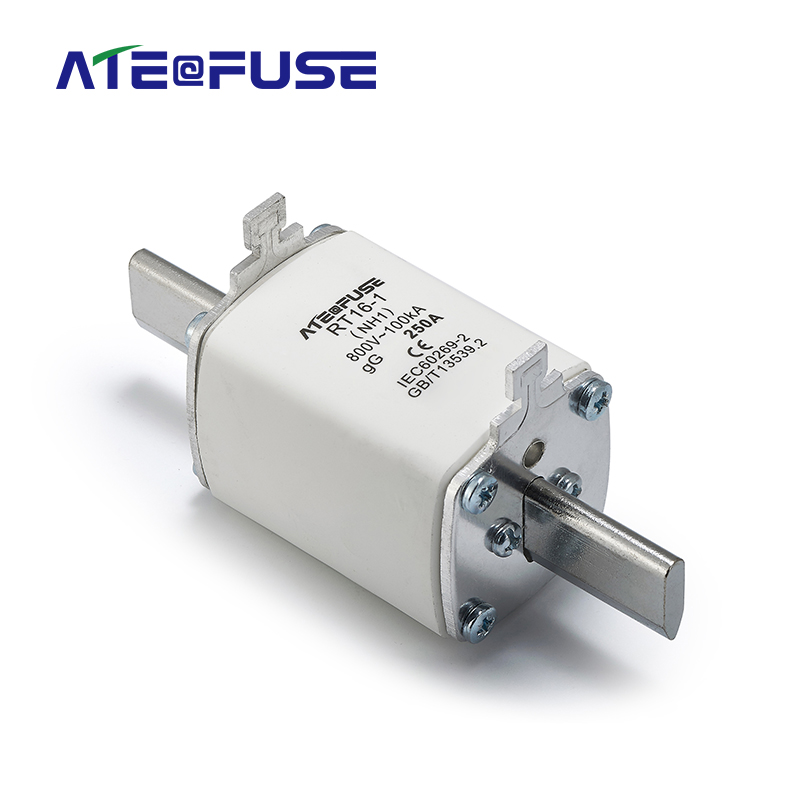

RT16-1(NH1) 800VAC HRC Square Blade Fuse

RT16-1(NH1) 800VAC Solar Panel Fuse is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and AC disconnects. This enhanced construction fuse ink with an NH1 standardized size can protect 800VAC Photovoltaic (PV) systems effectively.

Features & Benefits

800VAC Photovoltaic (PV) system available

80-250A ampere ratings available

Meets IEC60269-2 standard for global acceptance

Standardized NH1 construction

Low power dissipation design for high energy efficiency

NH screw mountable

100kA breaking capacity

Striker and microswitch available

Inquiry Download

Share to

Product Details

NT/NH HRC Square Blade Fuse

This product is a low-voltage AC full-range protection fuse, with symbol "standard size and full-range breaking capacity. It is suitable for short-circuit and overload protection of equipment and devices in power distribution or" communication circuit systems such as wires, power supplies, and communication cabinets.

NH Square Blade Fuse Approvals & Standards

IEC60269-1 and IEC60269-2

GB/T13539.1 and GB/T13539.2

Class of Operation

NH Square Blade Fuse Applications

• Combiner box

• PV string, PV array protection

• Inverters

• In-line PV module protection

Recommended Fuse Holder

Sist201 1000VAC Fuse Base

Optional Accessories

• Striker

• Microswitch

Country of Origin

People's Republic of China

Fuse cold resistance and power dissipation

Serial number	Rated current（A）	Pre-arcing I²t	Total I²t	1In（W）
1	80	9900	29800	7.8
2	100	19000	55000	9.6
3	125	39000	118000	11.5
4	160	69000	185000	12.8
5	200	119000	260000	15
6	224	169000	390000	17
7	250	240000	498000	20

NH Photovoltaic Fuse Dimension(mm)

Technical parameters

Fuse type

Rated Voltage

Rated Current (A)

Dimensions/Size (mm)

Figure No.

f(max)

b±0.2

e1±3

RT16-1(NH1)

AC800V

80、100、125、160、200、224、250

135±1.5

62±1.5

48±2
