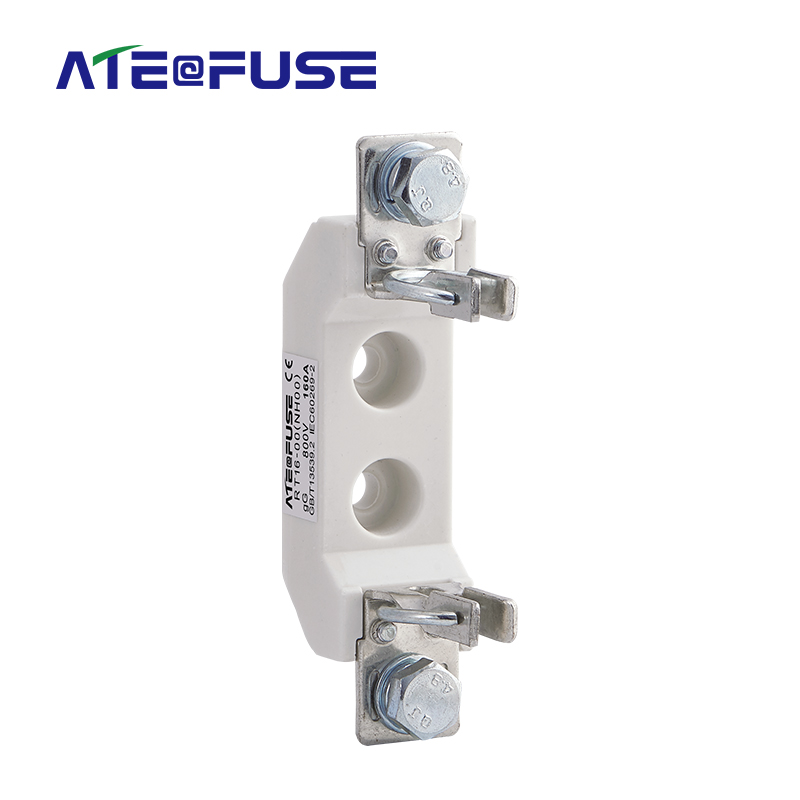

Sist101 800VAC NH00 Fuse Link recommended
800VAC Photovoltaic (PV) system available
160A ampere ratings
Meets IEC60269-2 standard for global acceptance
Steel plate enables high strength and durability
Low temperature rise for better performance of the circuit protection
NH screw mountable
100kA breaking capacity
Microswitch
This product is a low-voltage DC full-range protection fuse, with symbol "standard size and full-range breaking capacity. It is suitable for short-circuit and overload protection of equipment and devices in power distribution or" communication circuit systems such as wires, power supplies, and communication cabinets.
IEC60269-1 and IEC60269-2
GB/T13539.1 and GB/T13539.2
gG
• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection
• Do not operate under load
• Use 75℃ CU wire only
People's Republic of China
|
Fuse base model No. |
Equipped with fuse size |
Rated Voltage |
Rated Current |
Dimensions/Size (mm) |
|||||||||
|
Figure No. |
A |
B |
C |
D |
E |
F |
G |
H |
I |
||||
|
Sist101 |
RT16-NH(NH00) |
AC800V |
160 |
1 |
figure 1
|
||||||||
800VAC Solar PV Fuse Link
800VAC Solar PV Fuse Holder
