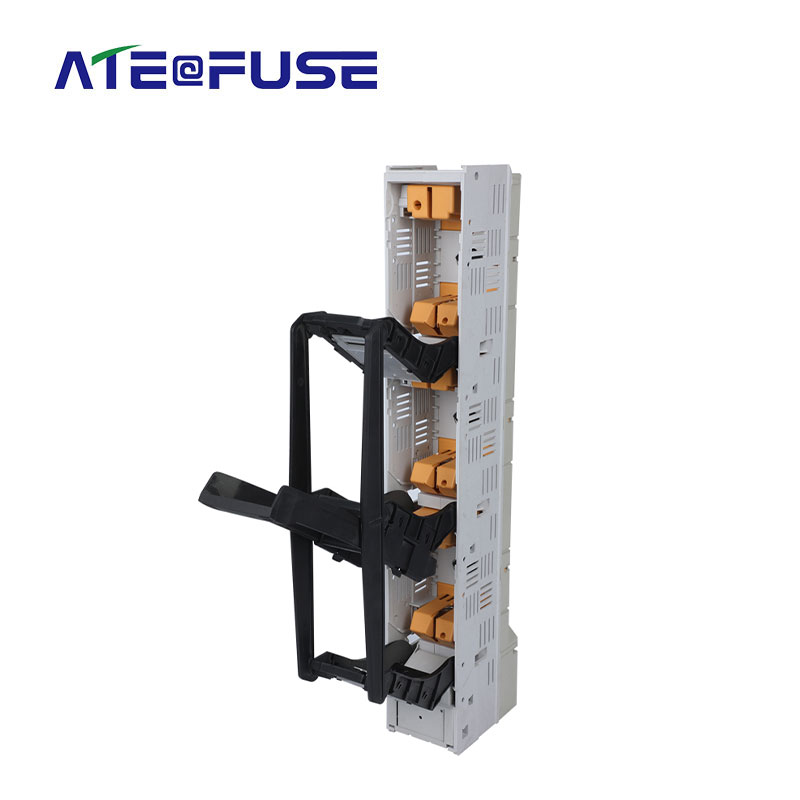

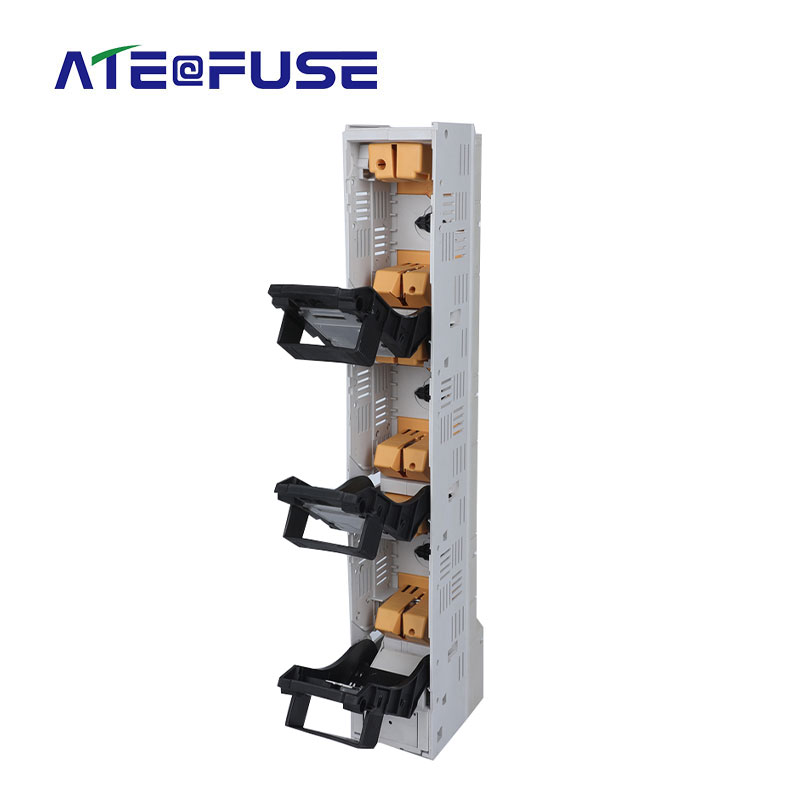

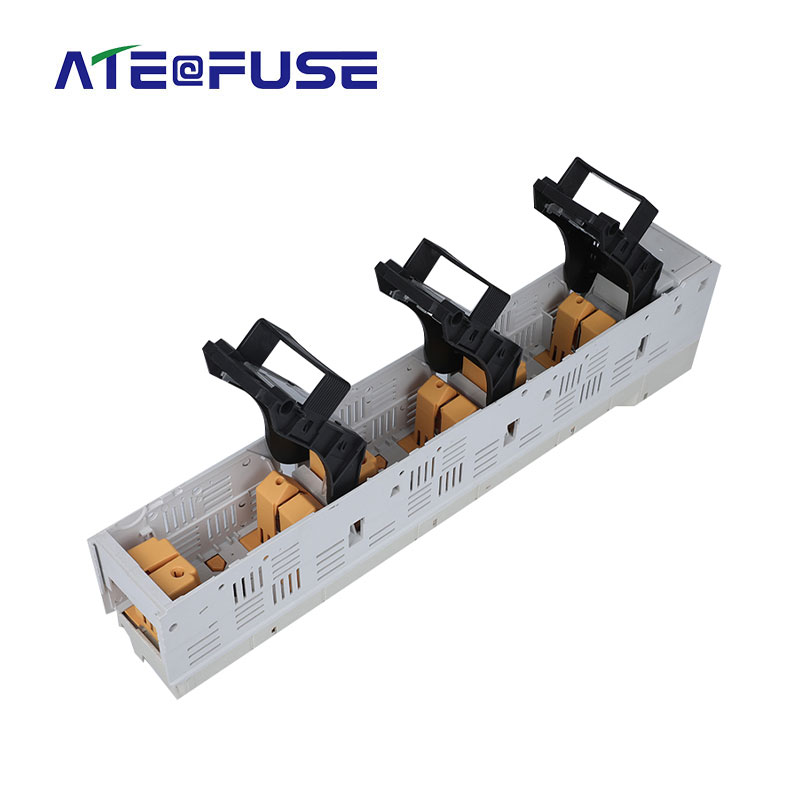

ATR-NH-800-1000V Fuse Switch Disconnector

ATR series fuse type switch disconnector can be operated with load, Suitable for rated AC/DC voltage up to 1000V，rated current 2A-630A, and can be hung on the busbar or installed on a fixed plate; it also provides an upper and lower input and output structure with a knife edge introduction And arc extinguishing device, can be used as a knife switch. The switch has a beautiful appearance, is novel and concise, and complies with IEC60947-3, GB14048.3 and other standards.

Features & Benefits

Rated voltage: 800V

Rated current: 2A-630A

EC60947-3, GB14048.3

Inquiry Download

Share to

Product Details

Usage categories

“gG/gL” Indicates a fuse-type isolating switch for general line protection with a full range of breaking capabilities.

Structural features of fuse link

The fuse link is a variable cross-section melt made of copper sheets and is encapsulated in a high-strength fusion tube. The fuse tube is filled with chemically treated high-purity quartz sand and special chemicals as arc extinguishing media. The two ends of the melt Use spot welding to securely electrically connect the contacts.

Main technical parameters

ATR2 Fuse Switch Disconnector

Fuse base model No.	Equipped with fuse size	Rated Voltage	Rated Current	Dimensions/Size (mm)

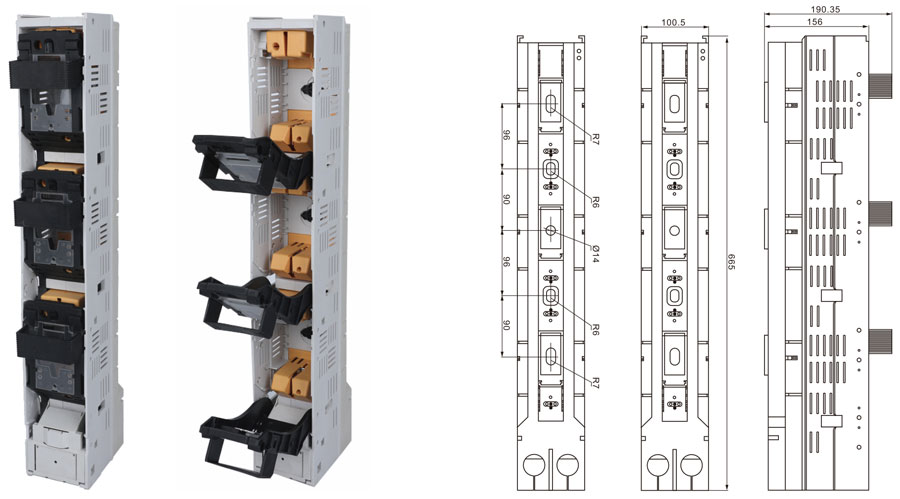

ATR2-NH1	NH1	800V	250	figure 1
ATR2-NH2	NH2	800V	400	figure 1
ATR2-NH3	NH3	800V	630	figure 1

ATR3 Fuse Switch Disconnector

Fuse base model No.	Equipped with fuse size	Rated Voltage	Rated Current	Dimensions/Size (mm)

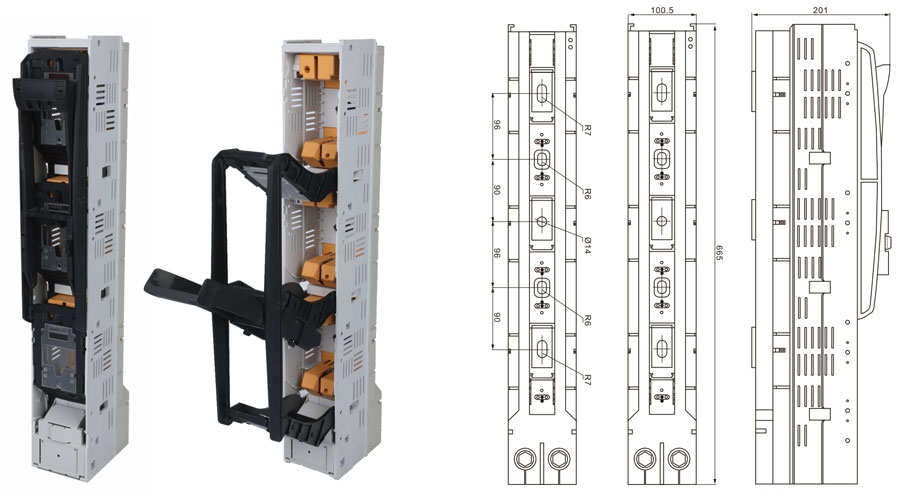

ATR3-NH1	NH1	800V	250	figure 2
ATR3-NH2	NH2	800V	400	figure 2
ATR3-NH3	NH3	800V	630	figure 2

Application

This series fuse is suitable for AC 50Hz, rated voltage to 800V, rated current to 315A, for overload and short circuit protection in electrical wiring(gG/gL).Because of different melting tablets,it also may derive for protecting the semiconductor device and its complete set installment from short circuit(aR/gR/gs/gtr)、as well as the electric motor from short circuit(aM). The rated breaking capacity up to 50kA. They conform to GB13539.2 and IEC60269-2.

Table 1 Basic parameter

Model specification	Rated voltage (V)	Rated Current (A)		Rated power consumption (W)
Model specification	Rated voltage (V)	base	fuse link	base	fuse link
NH00	800V	63A	2、4、6、10、16、20、25、32、40、50、63	≥12	≤12
NH1	800V	160A	40、50、63、80、100、125、160	≥23	≤23
NH2	800V	200A	80、100、125、160、200	≥34	≤34
NH3	800V	315A	125、160、200、250、300、315	≥48	≤48

Installation size

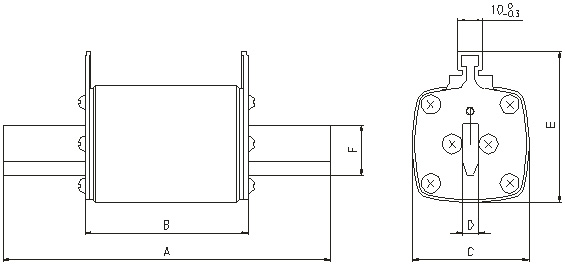

Figure-NH00-NH3 Fuse

Table 2 Fuse dimension

Product model	Model of similar products/Model of fast fuse	Current level	A	B	C	D	E	F
NH00	NT00、R031、NGTC00、RS31	2-63	78.5	54	30	6	61	15
NH1	NT1、R032、NGTC1、RS32	40-160	135	72	48	6	61	20
NH2	NT2、R033、NGTC2、RS33	125-200	150	74	60	6	71	25
NH3	NT3、R034、NGTC3、RS34	160-315	150	74	68	6	83	32

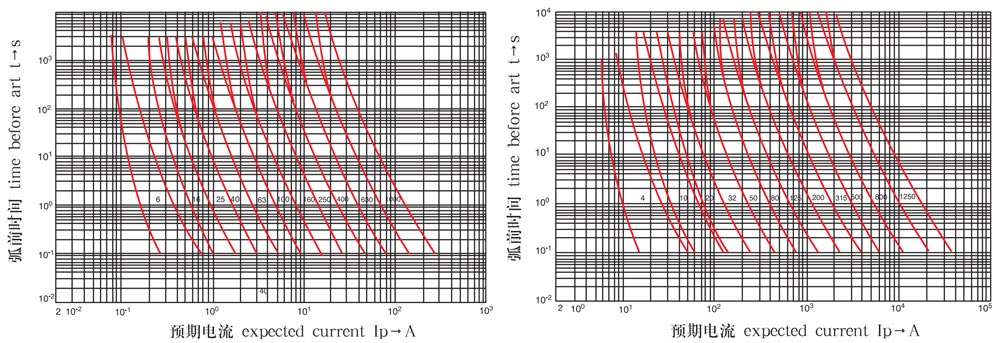

Melting characteristic curve
