ATDM5DC-250 High Voltage DC MCCB - 1000V/1500V 250A Solar PV Circuit Breaker

Optimized for small-scale photovoltaic systems and string-level protection, the ATDM5DC-250 offers precise overcurrent control for currents ranging from 63A to 250A. Its compact molded case design is ideal for high-density installations in solar combiner boxes, ensuring reliable circuit isolation in 1500V DC environments.

Features & Benefits

Rated Current (In): 63A, 80A, 100A, 125A, 140A, 160A, 180A, 200A, 225A, 250A

Insulation Voltage (Ui): 1500V

Impulse Voltage (Uimp): 12kV

Operational Voltage (Ue): DC250V, DC500V, DC750V, DC1000V, DC1500V

Breaking Capacity (Icu): DC1000V: 15kA / DC1500V: 5kA (2P); DC1500V: 20kA (3P)

Service Capacity (Ics): 100%Icu

Standards: GB/T14048.1, GB/T14048.2

Inquiry Download

Share to

Product Details

Model		ATDM5DC-250	ATDM5DC-250
Model		2P External Dimensions	3P External Dimensions
Rated current (A)	In	63A、80A、100A、125A、140A、160A、180A、200A、225A、250A
Rated insulation voltage（V)	Ui	1500V
Rated impulse withstand voltage（kV)	Uimp	12kV
Rated operational voltage (V)	Ue	DC250V、DC500V、DC750V、DC1000V、DC1500V	DC1000V、DC1250V、DC1500V
Rated Ultimate Short-circuit Breaking Capacity (kA)	Icu	DC1000V:15 DC1500V:5	DC1500V:20
Rated service short-circuit breaking capacity（kA）	Ics	100%Icu

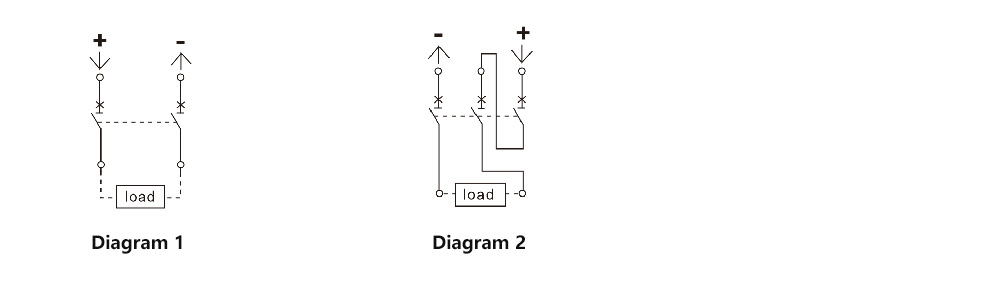

Connection Method		Pic1	Pic2
Isolation Function		Available
Utilization Category	Cat.	A
Mechanical Life	Times	20000
Electrical Life	Times	1500
Arcing Distance	mm	≯50
Dimensions	mm	200x73x135	200x107x135
Reference Ambient Temperature	℃	40

ATDM5DC-250 Solar PV DC MCCB 63A-250A

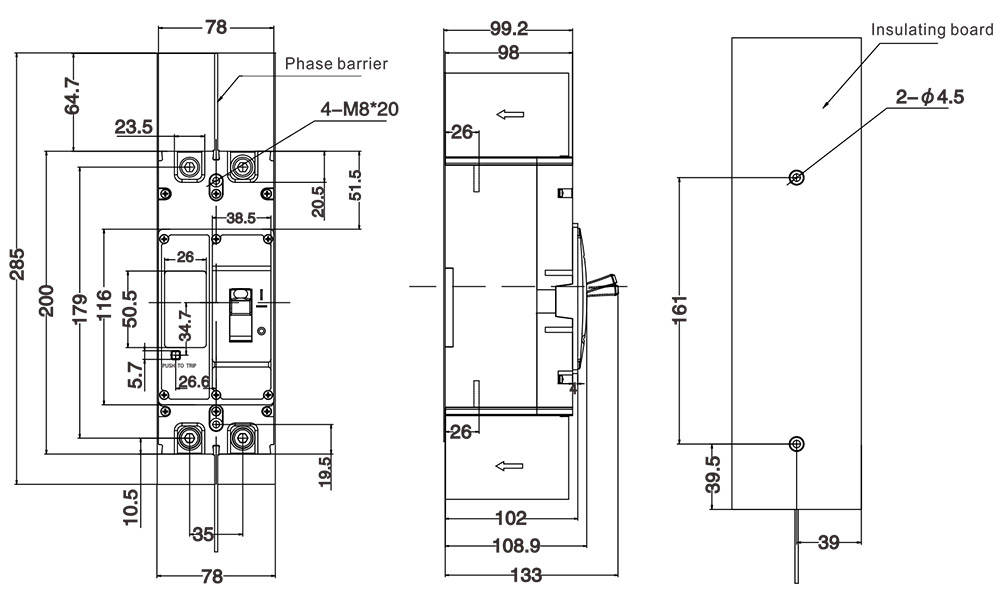

ATDM5DC-250 Mounting dimension of front connection(2P)

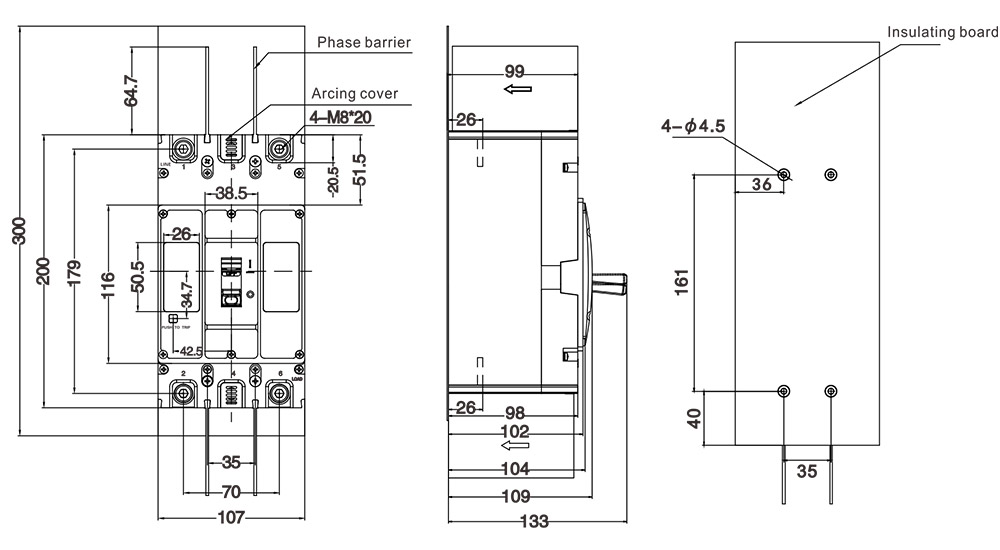

ATDM5DC-250 Mounting dimension of front connection(3P)

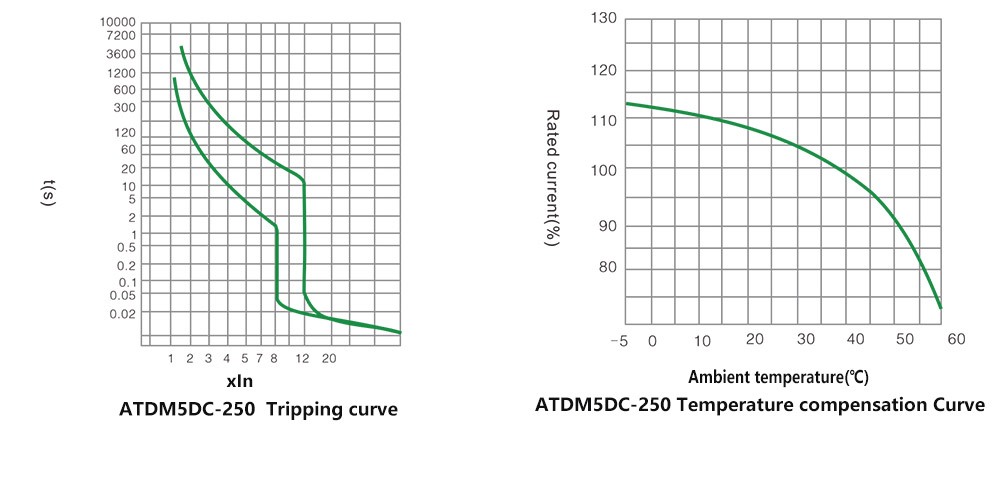

Tripping characteristic curve

Note: The characteristic curve is measured under cold conditions and three-phase load

Tripping characteristic curve-250

Professional DC Circuit Protection Solutions (ATDM5DC Series)

The ATDM5DC Series represents the pinnacle of high-voltage DC protection, specifically engineered for the rigorous demands of modern renewable energy infrastructure. Rated for operational voltages up to DC 1500V, these Moulded Case Circuit Breakers (MCCB) provide a versatile safety backbone for Utility-Scale Solar PV, Wind Power, and Battery Energy Storage Systems (BESS).

Key Technical Advantages

●High-Voltage Leadership: Fully optimized for DC 1500V electrical systems, ensuring compatibility with the latest global high-efficiency power architectures.
●Certified Safety & Isolation: Features a dedicated isolation function (Symbol:⊥⭕ ) that guarantees complete circuit disconnection for secure maintenance and operational peace of mind.
●Extreme Environmental Resilience: Engineered to perform reliably in harsh climates, with a temperature tolerance ranging from -45°C to +70°C and stable operation at altitudes up to 2000m.
●Industrial-Grade Durability: Rated for Pollution Level 3, the series utilizes advanced corrosion-resistant materials to prevent interference from conductive dust and gases in demanding industrial sites.
●Flexible Installation: Designed for versatile deployment, these breakers can be installed horizontally or vertically without compromising performance or protection integrity.

Global Application Scope

Whether protecting Solar Combiner Boxes and DC Busbars, securing Battery Racks in Energy Storage Systems, or managing Wind Turbine control circuits and EV Charging infrastructure, the ATDM5DC series delivers the high-breaking capacity and thermal stability required for critical DC applications worldwide.
