한국인No such thing as an "AC fuse" , nor a "DC fuse". All are rated in amps . If you need a 1 amp fuse; it wil work to limit current to one amp; RMS Ac or straight DC.
More >>
Standard: IEC60269,ISO8820,GB/T31465
Rated Voltage: AC690V
Rated Current: 4-2000A
Breaking Capacity: AC100kA,DC50kA
CE Approved and comply with RoHs.
|

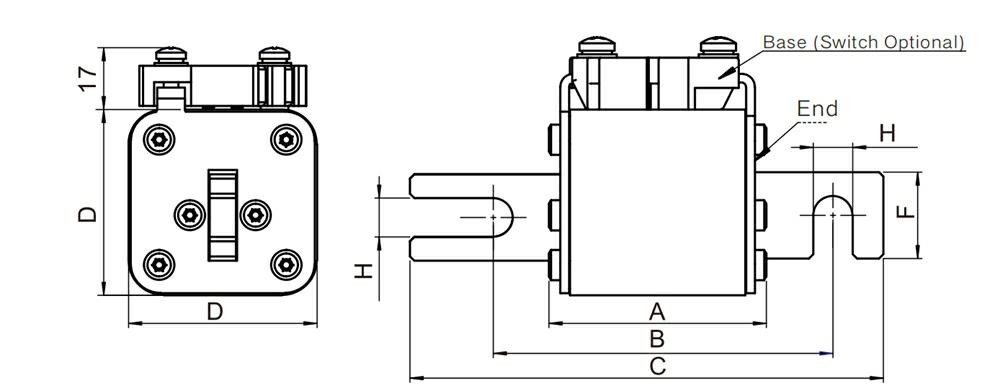

Figure No· |
A±2 |
B±2 |
C±2.5 |
D±2 |
H±0.5 |
F±0.5 |
M±1 |
N±1 |
|
01 |
50 |
75.5 |
108 |
43 |
9 |
20 |
14 |
12.5 |
|
1 |
51 |
77 |
109 |
51 |
11 |
25 |
12.5 |
16 |
|
2 |
51 |
77 |
109 |
60 |
11 |
32 |
12.5 |
16 |
|
3 |
51 |
77 |
109 |
74 |
11 |
32 |
12.5 |
16 |
|
Type |
Figure No |
Rated current (A) |
Rated voltage (V) |
Watts Loss (W) |
Energy Integrals ∫t (A²s) |
Screw Bolt |
Torque(N.m) |
|
|
Pre-Arcing I²t |
Total I²t |
|||||||
|
ATES-01DG75 |
01 |
40 |
690
|
8.5 |
48 |
270 |
M8
|
11N.m
|
|
50 |
11 |
75 |
490 |
|||||
|
63 |
13 |
110 |
760 |
|||||
|
80 |
16 |
200 |
1200 |
|||||
|
100 |
20 |
340 |
2300 |
|||||
|
125 |
25 |
605 |
3650 |
|||||
|
160 |
30 |
1100 |
7400 |
|||||
|
200 |
35 |
1900 |
13200 |
|||||
|
250 |
40 |
3400 |
23700 |
|||||
|
315 |
49 |
6600 |
43200 |
|||||
|
350 |
54 |
8700 |
58500 |
|||||
|
400 |
60 |
15500 |
99000 |
|||||
|
450 |
65 |
20500 |
139000 |
|||||
|
500 |
69 |
29000 |
188000 |
|||||
|
550 |
74 |
37800 |
225000 |
|||||
|
630 |
78 |
51200 |
325000 |
|||||
|
ATES-02DG77
|
1
|
50 |
690
|
12 |
69 |
490 |
M10
|
21N.m
|
|
63 |
15 |
110 |
780 |
|||||
|
80 |
18 |
200 |
1300 |
|||||
|
100 |
23 |
340 |
2300 |
|||||
|
125 |
28 |
605 |
4100 |
|||||
|
160 |
35 |
1100 |
7400 |
|||||
|
200 |
43 |
1700 |
11000 |
|||||
|
250 |
50 |
3200 |
20800 |
|||||
|
315 |
55 |
6200 |
39000 |
|||||
|
350 |
60 |
8600 |
55000 |
|||||
|
400 |
65 |
14000 |
88000 |
|||||
|
450 |
70 |
19300 |
118000 |
|||||
|
500 |
72 |
26800 |
169000 |
|||||
|
550 |
75 |
35800 |
226000 |
|||||
|
630 |
82 |
51800 |
386000 |
|||||
|
700 |
94 |
70700 |
455000 |
|||||
|
800 |
98 |
110000 |
720000 |
|||||
|
ATES-03DG77
|
2
|
400 |
690
|
60 |
11800 |
74000 |
M10
|
21N.m
|
|
450 |
64 |
18000 |
105000 |
|||||
|
500 |
69 |
25000 |
143000 |
|||||
|
550 |
74 |
31500 |
190000 |
|||||
|
630 |
79 |
42800 |
275000 |
|||||
|
700 |
90 |
60800 |
403000 |
|||||
|
800 |
106 |
87000 |
563000 |
|||||
|
900 |
110 |
126000 |
805000 |
|||||
|
1000 |
115 |
175000 |
1080000 |
|||||
|
1100 |
120 |
227000 |
1430000 |
|||||
|
1250 |
128 |
355000 |
2150000 |
|||||
|
ATES-05DG77
|
3
|
500 |
690
|
90 |
18000 |
94000 |
M10
|
21N.m
|
|
550 |
95 |
22500 |
134000 |
|||||
|
630 |
100 |
35600 |
199000 |
|||||
|
700 |
105 |
51000 |
286000 |
|||||
|
800 |
110 |
82300 |
466000 |
|||||
|
900 |
118 |
110000 |
665000 |
|||||
|
1000 |
123 |
163000 |
960000 |
|||||
|
1100 |
128 |
220000 |
1270000 |
|||||
|
1250 |
135 |
303000 |
1750000 |
|||||
|
1400 |
155 |
392000 |
2190000 |
|||||
|
1500 |
160 |
464000 |
2598000 |
|||||
|
1600 |
163 |
543000 |
3050000 |
|||||
|
*1800 |
168 |
876000 |
4360000 |
|||||
|
*2000 |
175 |
1140000 |
5180000 |
|||||

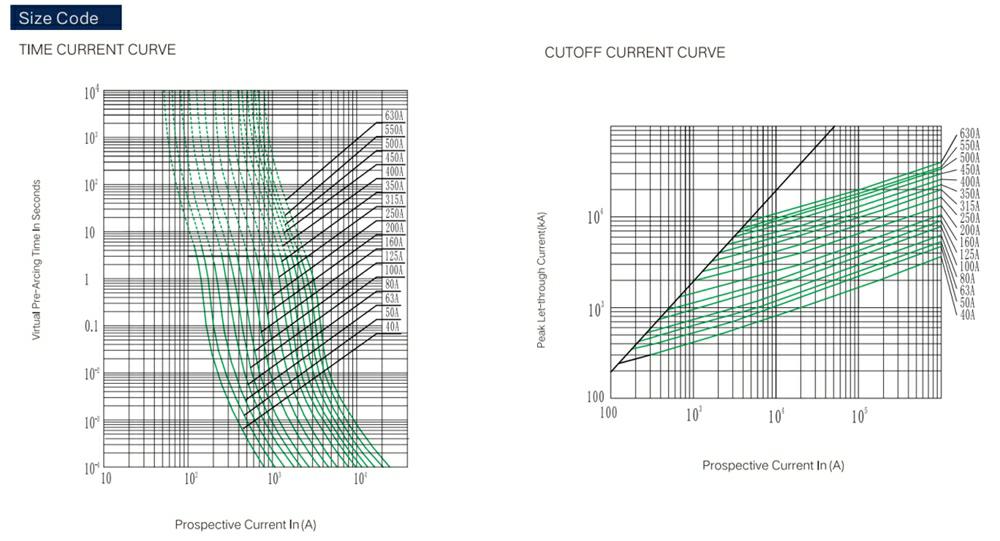

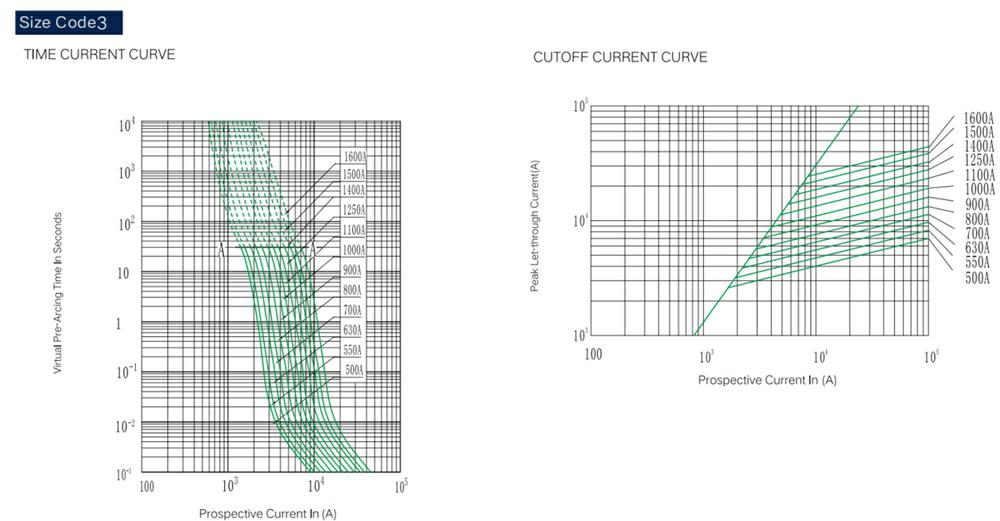

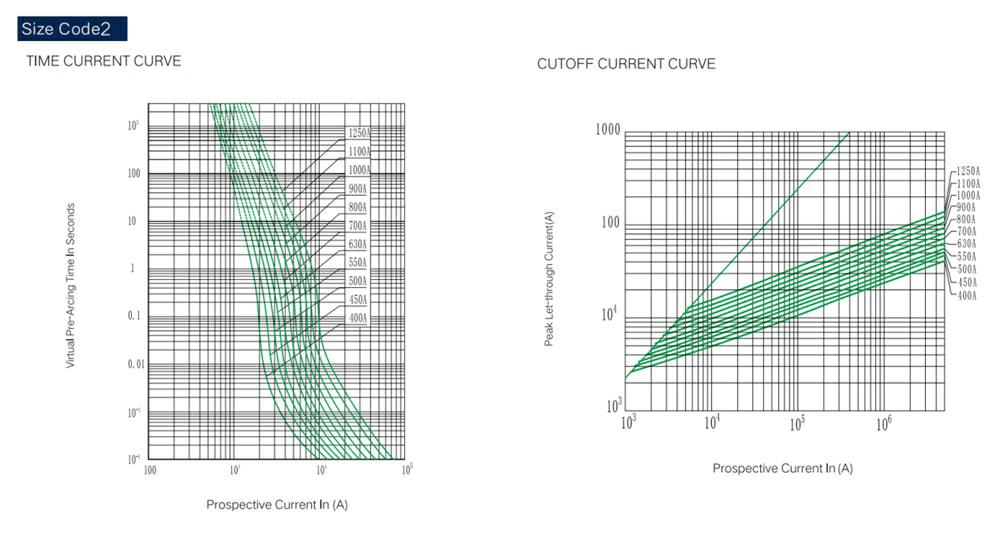

TIME CURRENT CURVE
EQUIPPED WITH SWITCH
|
Type |
Rated voltage |
Rated current |
Minimum voltage |
Minimum current |
|
WDK Y |
250V |
5A |
10V |
10mA |
|
WDK-J |
125V |
0.1A |
10V |
1mA |
Aite fuse offers Energy Storage System (ESS) dedicated fuses for protecting high-power battery charging/discharging and energy conversion equipment. These round tube bolted fuses feature small size, high breaking capacity, and resistance to current impact, while also being able to withstand high-strength mechanical vibration and shock, wide temperature range impact, and strong chemical load. They are highly suitable for the Energy Storage industry application, and can be used for the short-circuit and backup protection of ESS drive power systems, power conversion systems (PCS), energy management systems, battery racks, and high-voltage DC busbars, serving as a critical component to enhance the system's safety and reliability.
Note: All test data in this specification are measured under DC environment time constant (expected test current>50KAtake 10-15ms: expected test current l<50KA, take 0.5xl°3)and wiring methods refer toISO8820GB/T31465
We are a professional manufacturer for high-quality various DC or AC Fuses, located in Yueqing Economic Development Zone, Zhejiang Province. Our company is committed to R&D, production and sales of circuit protection devices, fuses and related accessories. The company has introduced high-tech talents from the industry standards committee, and has strong technical force to provide customers with a full range of circuit protection solutions. The company's main products are: fuses for photovoltaic (inverter) protection, fuses for new energy electric vehicle system protection, fuse for charging pile system protection, Fuses for energy storage protection, high voltage current limiting protection, etc.
