ATPV-63L 1500VDC 14x85mm Solar PV Fuse

ATPV-63L 1500VDC 14x85mm Solar PV Fuse is specifically designed to protect the Photovoltaic (PV) systems. This unique 14x85mm cylindrical fuse link makes it ideal for continuous current cycling and effectively protects the 1500VDC Photovoltaic (PV) systems.14x85mm fuse provide high ampere rating protection of 10A to 50A in small spaces to increase application flexibility.
ATPV-63L 1500VDC Solar PV Fuse Link
ATPV-63L 1500VDC Solar PV Fuse Link
ATPV-63L 1500VDC Solar PV Fuse Link
ATPV-63L 1500VDC Solar PV Fuse Link
ATPV-63L 1500VDC Solar PV Fuse Link

Features & Benefits

1500VDC Photovoltaic (PV) system available

10-50A ampere ratings available

Meets lEC and UL Photovoltaic standards for global acceptance

Compact cylindrical construction

Low power dissipation performance for energy efficiency

DIN Rail mountable

50kA breaking capacity approved by UL,TUV,CE

Inquiry Download
Share to
Product Details
Production Description

1500VDC 14x85mm Solar PV fuse link



Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6



Class of Operation

gPV



Applications

• Combiner box

• PV string, PV array protection

• Inverters

• Battery charge controllers

• Re-combiner units

• In-line PV module protection



Recommended Fuse Holder

Without indicator: ATPV-63LD 10/14x85

With indicator: ATPV-63LD 10/14x85X



Country of Origin

People's Republic of China



Fuse cold resistance and power dissipation

Serial number

Rated current(A)

Pre-arcing I2t

Total I2t

1In(W)

1

15

167

932

3.5

2

16

178

995

4.0

3

20

223

1243

4.5

4

25

279

1550

4.6

5

30

304

2220

5.4

6

32

325

2370

6.2

7

35

390

2844

7.5

8

40

450

3300

7.9

9

45

510

3700

8.2

10

50

570

4200

9.0

11

55

1050

5500

10.0

12

63

1200

6300

12.0

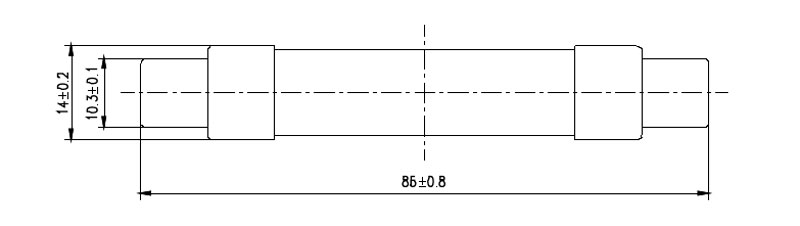

Dimension(mm)



Technical parameters

Fuse type

Rated Voltage (V)

Rated Current (A)

Dimensions/Size (mm)

Dissipated power (W)

gPV

Figure No.

D×L

ATPV-63L

DC1500V

10、12、15、16、20、25、30、32、35、40、45、50

1

14×85

≤12



Time-Current Characteristic

rated current (A)

Standard:IEC60269-6

Standard:UL248-19

105%

135%

135%

200%

In≤30

>1h non fusing

<1h fusing

<1h fusing

12-240s

30<In≤60

>1h non fusing

<1h fusing

<1h fusing

12-360s



Melting characteristic curve
