ATPV-80 1500VDC Solar PV Fuse Link

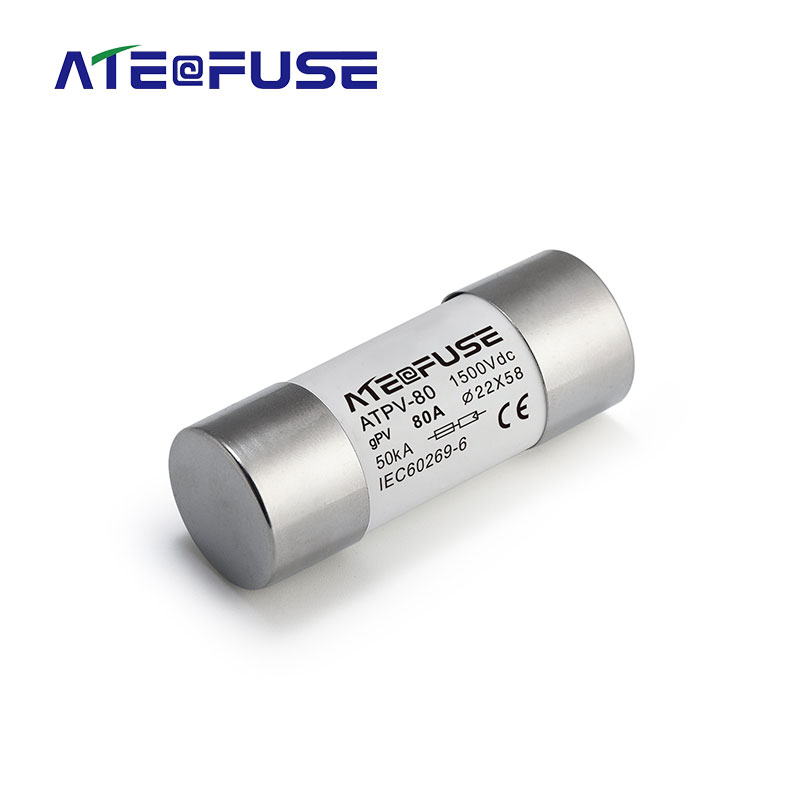

ATPV-125 1500VDC Solar PV Fuse Link was designed specifically for protecting and isolating Solar Photovoltaic (PV) strings. This cylindrical style fuse link with a 22x58mm compact size can protect 1500VDC Photovoltaic (PV) systems safely. 1500VDC 80A 22x58mm Solar PV Thermal Fuse Link offers multiple ampere ratings from 32A to 80A, which are capable of interrupting overload current associated with faulted Photovoltaic (PV) systems. Zhejiang Aite Electric Technology Co., Ltd. (Aitefuse), a front-line Chinese Solar PV Fuse manufacturer, aims to provide customers with safer circuit protection.
ATPV-125 1500VDC Solar PV Fuse Link
ATPV-125 1500VDC Solar PV Fuse Link
ATPV-125 1500VDC Solar PV Fuse Link
ATPV-125 1500VDC Solar PV Fuse Link
ATPV-125 1500VDC Solar PV Fuse Link

Features & Benefits

1500VDC Photovoltaic (PV) system available

32-80A ampere ratings available

Meets lEC60269-6 standards for global acceptance

Compact cylindrical construction

Low power dissipation and temperature rise features for longer life cycle

DIN Rail mountable

50kA breaking capacity approved by TUV,CE

Inquiry Download
Share to
Product Details
Production Description

1500VDC 22x58mm Solar PV fuse link



Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6



Class of Operation

gPV



Applications

• Combiner box

• PV string, PV array protection

• Inverters

• Battery charge controllers

• Re-combiner units

• In-line PV module protection



Recommended Fuse Holder

Without indicator: ATPV-80D 22x58

With indicator: ATPV-80D 22x58X



Country of Origin

People's Republic of China



Fuse cold resistance and power dissipation

Serial number

Rated current(A)

Pre-arcing I2t

Total I2t

1In(W)

1

32

325

2370

6.2

2

35

390

2844

7.5

3

40

450

3300

7.9

4

45

510

3700

8.2

5

50

570

4200

9.0

6

55

630

4600

10.0

7

60

690

5100

10.0

8

63

710

5200

11.0

9

65

720

5300

12.0

10

70

800

5900

12.0

11

75

850

6500

12.0

12

80

950

6720

12.0



Dimension(mm)



Technical parameters

Fuse type

Rated Voltage (V)

Rated Current (A)

Dimensions/Size (mm)

Dissipated power (W)

gPV

Figure No.

D×L

ATPV-80

DC1500V

15、16、20、25、30、32、35、40、45、50、55、63、65、70、75、80

1

22×58

≤12



Time-Current Characteristic

rated current (A)

Standard:IEC60269-6

Standard: UL248-19

105%

135%

135%

200%

In≤30

>1h non fusing

<1h fusing

<1h fusing

12-240s

30<In≤60

>1h non fusing

<1h fusing

<1h fusing

12-360s

60<In≤100

>1h non fusing

<1h fusing

<1h fusing

0-480s



Melting characteristic curve
