ATPV-30S 1500VDC 10x38mm Solar DC Fuses

The ATPV-30S 1500VDC 10x38mm Solar DC Fuses is designed to provide rapid protection under conditions of overload current associated with Photovoltaic (PV) systems. This 10x38mm full- size cylindrical fuse secures the 1500VDC Photovoltaic (PV) systems. The 1500VDC 32A 10x38mm Solar PV Fuse Link has multiple ampere ratings ranging from 1A to 32A to help meet the specific requirements of various Photovoltaic (PV) applications, including PV combiner boxes, inverters, and more. As an explorer of Solar Photovoltaic (PV) Fuses in China, Zhejiang Aite Electric Technology Co., Ltd. (Aitefuse) insists on using high-quality materials throughout the process to ensure the performance of each fuse.

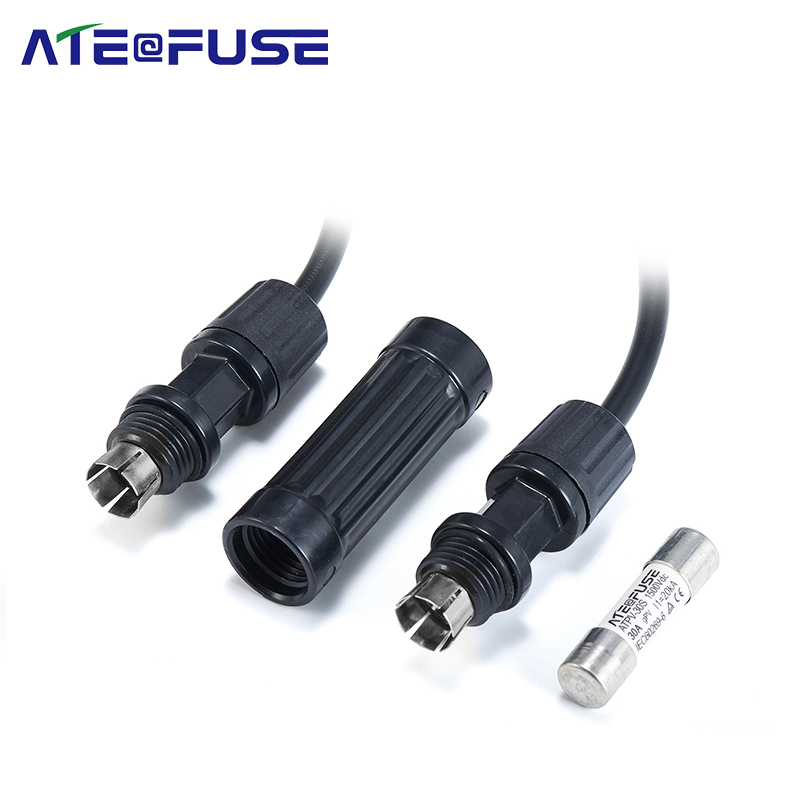

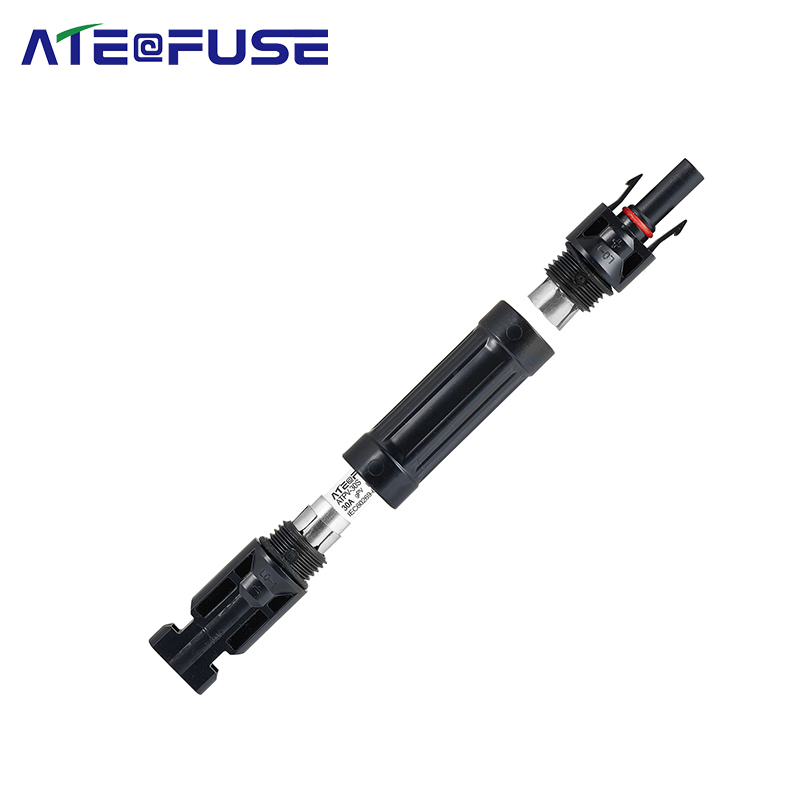

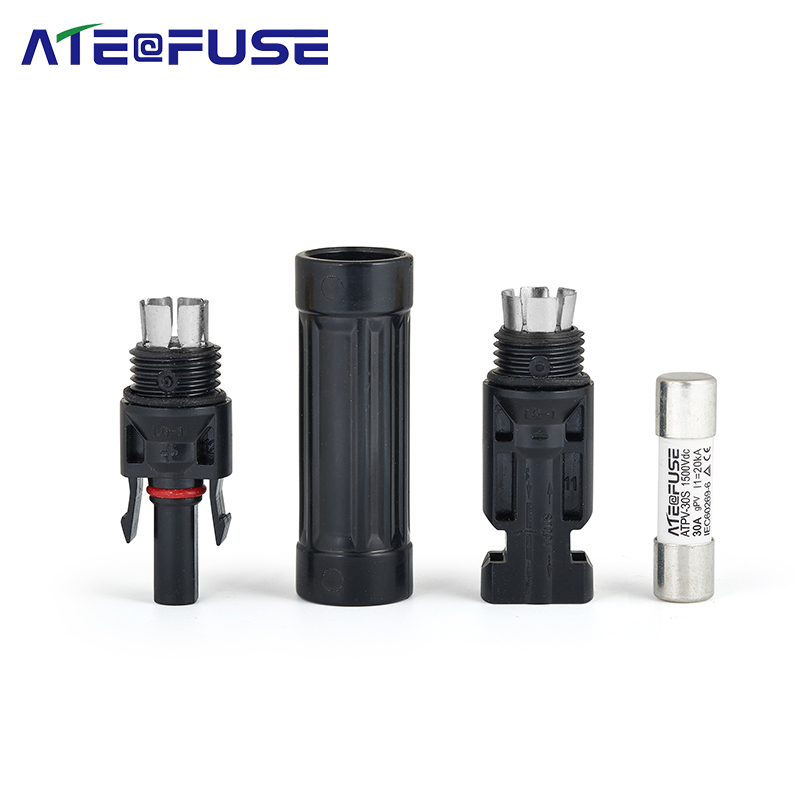

ATPV-30S 1500VDC Solar PV Fuse Link
ATPV-30S 1500VDC Solar PV Fuse Link
ATPV-30S 1500VDC Solar PV Fuse Link
ATPV-30S 1500VDC Solar PV Fuse Link
ATPV-30S 1500VDC Solar PV Fuse Link
ATPV-30S 1500VDC Solar PV Fuse Link

Features & Benefits

• 1500VDC Photovoltaic (PV) system available

• 1-32A ampere ratings available

• Meets lEC and UL Photovoltaic standards for global acceptance

• Standardized cylindrical construction

• Low power dissipation performance for energy efficiency

• DIN Rail mountable

• 20kA breaking capacity approved by TUV,CE

Inquiry Download
Share to
Product Details
Production Description

1500VDC 10x38mm Solar PV fuse link



Approvals & Standards

IEC60269-1 and IEC60269-6

UL248-1 and UL248-19

GB/T13539.1 and GB/T13539.6



Class of Operation

gPV



Applications

• Combiner box

• PV string, PV array protection

• Inverters

• Battery charge controllers

• Re-combiner units

• In-line PV module protection



Recommended MC4 Fuse connector

MC4



Optional Accessories

ATPV-30 Clip



Country of Origin

People's Republic of China



Fuse cold resistance and power dissipation

Serial number

Rated current (A)

Pre-arcing I2t

Total I2t

0.8In (W)

1In (W)

1

1

1.1

3.9

0.99

1.30

2

2

1.5

5.2

1.04

1.36

3

3

2.4

8.6

1.08

1.42

4

4

2.9

11.4

1.2

1.58

5

5

6.7

25.7

1.39

1.83

6

6

10.5

40

1.40

1.84

7

8

15.2

57

1.42

1.86

8

10

20

62

1.58

2.08

9

12

30.4

143

2.00

2.62

10

15

45.6

205

2.24

2.95

11

16

49.8

220

2.33

3.06

12

20

79.8

315

2.37

3.12

13

25

114

486

2.63

3.46

14

30

143

713

2.88

3.78

15

32

148

722

3.00

3.95



Dimension(mm)



Technical parameters

Fuse type

Rated Voltage (V)

Rated Current (A)

Dimensions/Size (mm)

Dissipated power (W)

gPV

Figure No.

D×L

ATPV-30S

DC1500V

1、2、3、4、5、6、8、10、12、15、16、20、25、30、32

1

10×38

≤4.5



Time-Current Characteristic

rated current (A)

Standard:IEC60269-6

Standard: UL248-19

105%

135%

135%

200%

In≤30

>1h non fusing

<1h fusing

<1h fusing

12-240s

30<In≤60

>1h non fusing

<1h fusing

<1h fusing

12-360s



Melting characteristic curve
