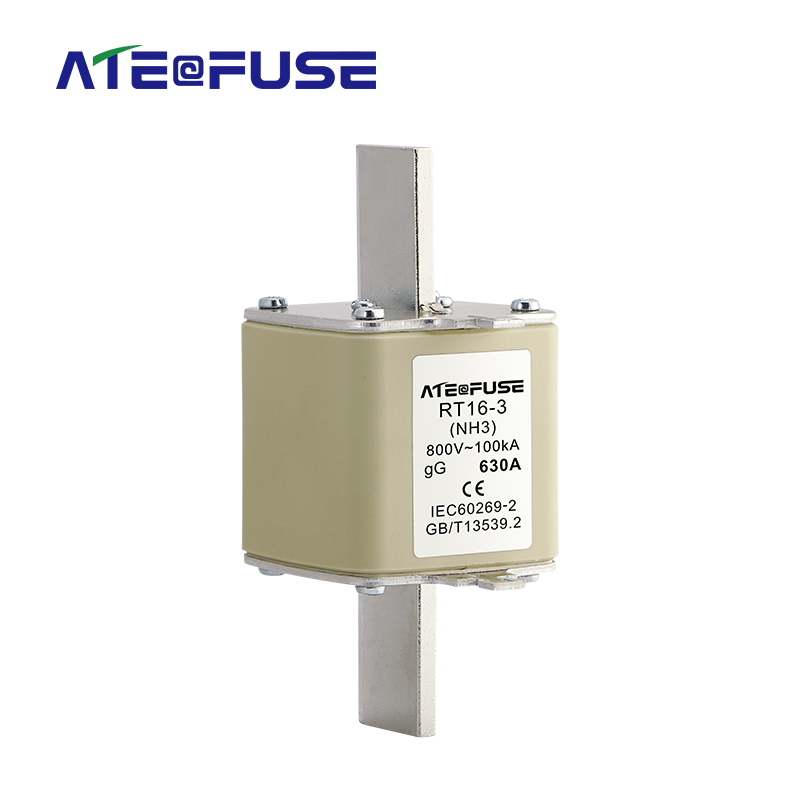

RT16-3(NH3) 800VAC HRC Square Blade Fuse

RT16-3(NH3) 800VAC Solar Panel Fuse is specifically designed for protecting and isolating Photovoltaic (PV) array combiners and AC disconnects. This enhanced construction fuse ink with an NH1 standardized size can protect 800VAC Photovoltaic (PV) systems effectively.

Features & Benefits

800VAC Photovoltaic (PV) system available

315-630A ampere ratings available

Meets IEC60269-2 standard for global acceptance

Standardized NH3 construction

Low power dissipation design for high energy efficiency

NH screw mountable

100kA breaking capacity

Striker and microswitch available

Inquiry Download

Share to

Product Details

NT/NH HRC Square Blade Fuse

This product is a low-voltage AC full-range protection fuse, with symbol "standard size and full-range breaking capacity. It is suitable for short-circuit and overload protection of equipment and devices in power distribution or" communication circuit systems such as wires, power supplies, and communication cabinets.

NH Square Blade Fuse Approvals & Standards

IEC60269-1 and IEC60269-2

GB/T13539.1 and GB/T13539.2

Class of Operation

NH Square Blade Fuse Applications

• Combiner box

• PV string, PV array protection

• Inverters

• In-line PV module protection

Recommended Fuse Holder

Sist601 1000VAC Fuse Base

Optional Accessories

• Striker

• Microswitch

Country of Origin

People's Republic of China

Fuse cold resistance and power dissipation

Serial number	Rated current（A）	Pre-arcing I²t	Total I²t	1In（W）
1	315	380000	860000	25
2	355	510000	1150000	29
3	400	720000	1650000	31
4	425	885000	1980000	34
5	500	1240000	2950000	38
6	630	1820000	5300000	44

NH Photovoltaic Fuse Dimension(mm)

Technical parameters

Fuse type

Rated Voltage

Rated Current (A)

Dimensions/Size (mm)

Figure No.

f(max)

b±0.2

e1±3

RT16-3(NH3)

AC800V

315、355、400、425、500、630

150±2.5

62±2.5

67±3

Related Category

800VAC Solar PV Fuse Link

800VAC Solar PV Fuse Holder
