ATES-MF Series AC/DC750V Energy Storage FUSE

Name: ATES-MF Series AC/DC750V Energy Storage FUSE
Brand: Aite
SKU: 00647
Rating: 4.9 (374 reviews)

Aite fuse offers Energy Storage System (ESS) dedicated fuses for protecting high-power battery charging/discharging and energy conversion equipment. These round tube bolted fuses feature small size, high breaking capacity, and resistance to current impact, while also being able to withstand high-strength mechanical vibration and shock, wide temperature range impact, and strong chemical load. They are highly suitable for the Energy Storage industry application, and can be used for the short-circuit and backup protection of ESS drive power systems, power conversion systems (PCS), energy management systems, battery racks, and high-voltage DC busbars, serving as a critical component to enhance the system's safety and reliability.

Features & Benefits

Standard: IEC60269,ISO8820,GB/T31465

Rated Voltage: AC/DC750V

Rated Current: 35-800A

Breaking Capacity: AC100kA,DC50kA

CE Approved and comply with RoHs.

Inquiry Download

Share to

Product Details

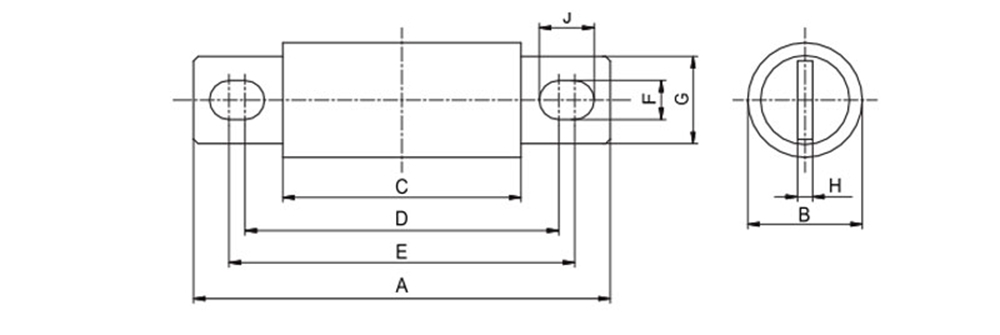

Dimension(mm)

Figure No.	A±2	B±0.5	C±0.5	D±1.5	E±1.5	F±1	G±1	H±0.2
02B92	112	25	72	88	96	8.5	19	4
03B95	116	30	72	90	98	8.5	24	5
04B100	128	38	72	90	108	10.5	25	6
05B102	130	51	72	90	108	10.5	38	6
06B120	174	63	72	128.5	139.5	12.5	51	10
07B128	172	75	72	123	133	13	60	10

Technical parameters

Type	Figure No.	Rated current (A)	Watts Loss (W)	Energy Integrals I²t(A²s)
Type	Figure No.	Rated current (A)	Watts Loss (W)	Pre-Arcing I²t	TotaI I²t
ATES-MF	02B92	35	9.5	34	148
		40	10.5	74	300
		45	11.5	95	420
		50	12	135	590
		60	13	190	870
		70	17	300	1680
		80	19	350	2000
		90	22.5	400	2500
		100	24	540	3300
	03B95	125	27	1430	6500
		150	31	2660	9500
		175	34	3900	15700
		200	40	5200	19950
	04B100	225	43	7300	29500
		250	45	9400	39900
		275	49	11900	59900
		300	53	16200	67500
	05B102	325	57	19500	79400
		350	61	22800	90300
		400	73	31000	118800
	06B134	450	90	34200	129200
		500	100	42800	159600
		600	114	64600	242300
	07B128	700	119	67500	281200
	07B128	800	133	75100	416100

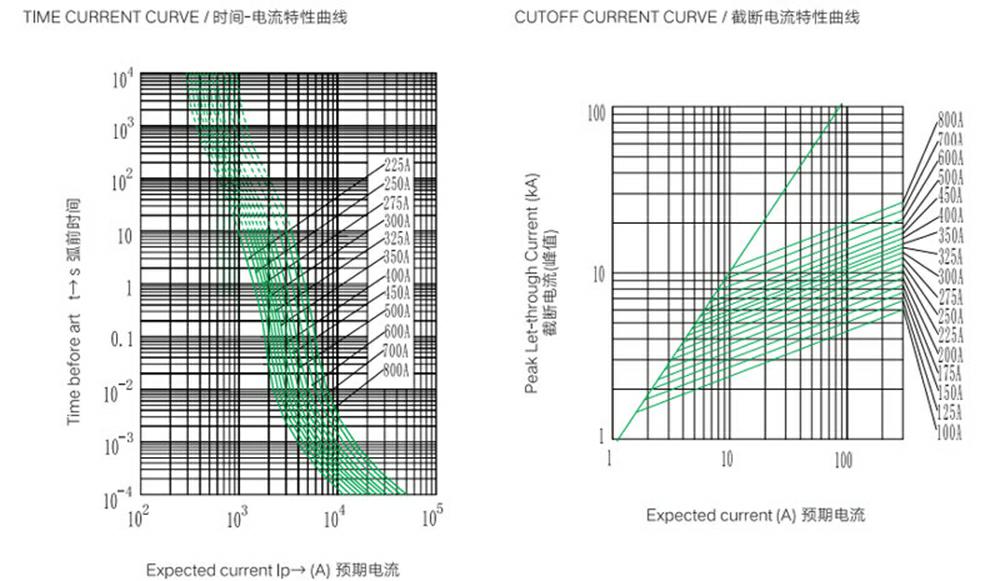

Characteristic Curve

TIME CURRENT CURVE

Note: All test data in this specification are measured under DC environment time constant (expected test current>50KAtake 10-15ms: expected test current l<50KA, take 0.5xl°3)and wiring methods refer toISO8820GB/T31465
