ATES-MD Series AC/DC500V Energy Storage FUSE

Name: ATES-MD Series AC/DC500V Energy Storage FUSE
Brand: Aite
SKU: 00648
Rating: 4.9 (374 reviews)

Aite fuse offers Energy Storage System (ESS) dedicated fuses for protecting high-power battery charging/discharging and energy conversion equipment. These round tube bolted fuses feature small size, high breaking capacity, and resistance to current impact, while also being able to withstand high-strength mechanical vibration and shock, wide temperature range impact, and strong chemical load. They are highly suitable for the Energy Storage industry application, and can be used for the short-circuit and backup protection of ESS drive power systems, power conversion systems (PCS), energy management systems, battery racks, and high-voltage DC busbars, serving as a critical component to enhance the system's safety and reliability.

Features & Benefits

Standard: IEC60269,ISO8820,GB/T31465

Rated Voltage: AC/DC500V

Rated Current: 35-1200A

Breaking Capacity: AC100kA,DC50kA

CE Approved and comply with RoHs.

Inquiry Download

Share to

Product Details

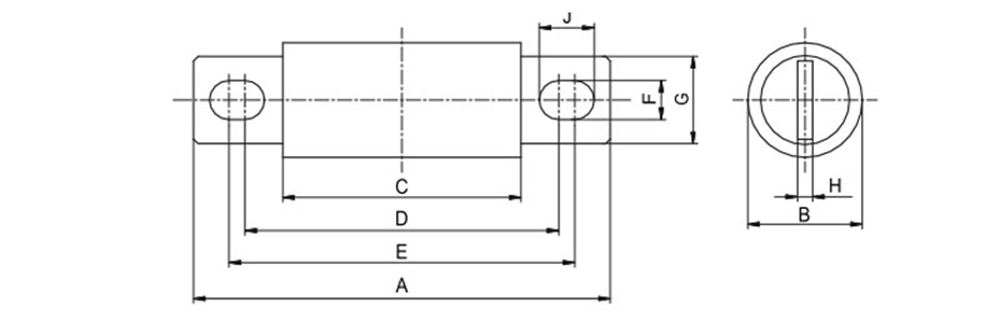

Dimension(mm)

Figure No.	A±2	B±0.5	C±0.5	D±1.5	E±1.5	F±1	G±1	H±0.2
02B72	91	25	52	68	76	8.5	19	4
03B75	93	30	52	70	78	8.5	24	5
04B80	108	38	52	70	88	10.5	25	6
05B82	110	51	52	70	88	10.5	38	6
06B100	154	63	52	108.5	119.5	12.5	51	10
07B108	152	75	52	103	113	13	60	10

Technical parameters

Type	Figure No.	Rated current (A)	Watts Loss (W)	Energy Integrals I²t(A²s)
Type	Figure No.	Rated current (A)	Watts Loss (W)	Pre-Arcing I²t	TotaI I²t
ATES-MD	02B72	35	8.5	31	138
		40	7.6	72	328
		45	7.6	95	418
		50	7.6	124	627
		60	9.5	190	846
		70	10.5	238	865
		80	12.5	285	1283
		90	14.5	333	1473
		100	17	447	1853
	03B75	125	27	741	3230
		150	31	998	4275
		175	35	1330	5795
		200	38	1758	7980
	04B80	225	38	4275	21950
		250	40	5938	30400
		275	45	7410	38190
		300	50	9215	47030
		325	52	12830	60330
		350	57	13490	68880
		400	63	18050	91680
	05B82	450	72	23280	119700
		500	81	27550	141100
		600	105	38950	194800
	06B114	700	114	51300	281200
	06B114	800	124	72200	387600
	07B108	1000	138	85500	408500
	07B108	1200	171	114000	560500

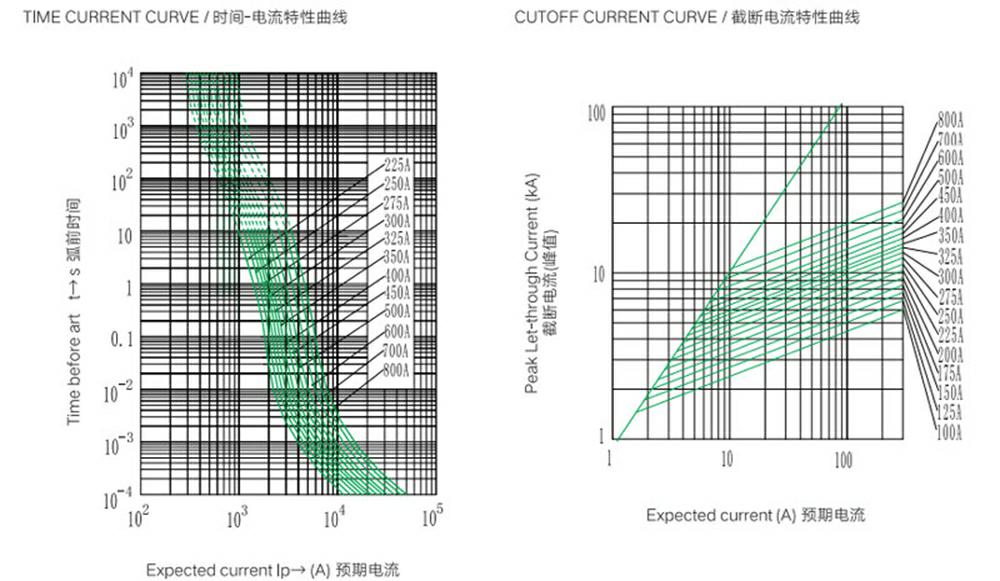

Characteristic Curve

TIME CURRENT CURVE

Note: All test data in this specification are measured under DC environment time constant (expected test current>50KAtake 10-15ms: expected test current l<50KA, take 0.5xl°3)and wiring methods refer toISO8820GB/T31465
