Volts: -415V
Amps: -20- 400A
Ir: - 80kA @ 415V
Standard: 8S88: Part 5
| Rating | Slotted Fixing Center | |
| (A) | 82mm | 92mm |
| 20 | JPU(20MJ30-7) | JSU(20MJ31-7) |
| 25 | JPU(25MJ30-7) | JSU(25MJ31-7) |
| 32 | JPU(32MJ30-7) | JSU(32MJ31-7) |
| 40 | JPU(40MJ30-7) | JSU(4OMJ31-7) |
| 50 | JPU (50MJ30-7) | JSU(50MJ31-7) |
| 63 | JPU(63MJ30-7) | JSU(63MJ31-7) |
| 80 | JPU(80MJ30-7) | JSU(8OMJ31-7) |
| 100 | JPU(100MJ30-7) | JSU(100MJ31-7) |
| 125 | JPU(125MJ30-7) | JSU(125MJ31-7) |
| 160 | JPU(160MJ30-7) | JSU(160MJ31-7) |
| 200 | JPU(200MJ30-7) | JSU(200MJ31-7) |
| 250 | JPU(250MJ30-7) | JSU(250MJ31-7) |
| 315 | JPU(315MJ30-7) | JSU(315MJ31-7) |
| 355 | JPU(355MJ30-7) | JSU(355MJ31-7) |
| 400 | JPU(400MJ30-7) | JSU(400MJ31-7) |

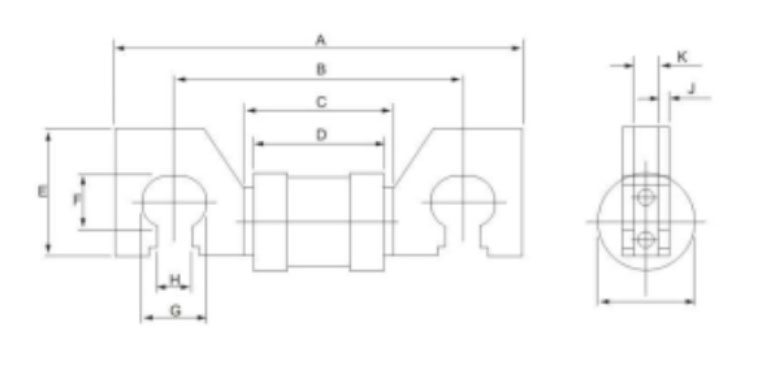

| Type | Current | A | B | C | D | E | F | G | H | I | J | K |
| MJ30-7 | Up to 200A | 110 | 82 | 45. | 40. | 30 | 14. | 17. | 9.8 | 30. | 2.4 | 6.45/6.53 |
| MJ30-7 | 250-400A | 110 | 82 | 45. | 40. | 30 | 14. | 17. | 9.8 | 38 | 2.4 | 6.45/6.53 |
| MJ31-7 | Up to 400A | 131 | 92 | 47 | 41 | 38 | 17. | 20. | 10. | 38 | 3.2 | 8.05/8.73 |
