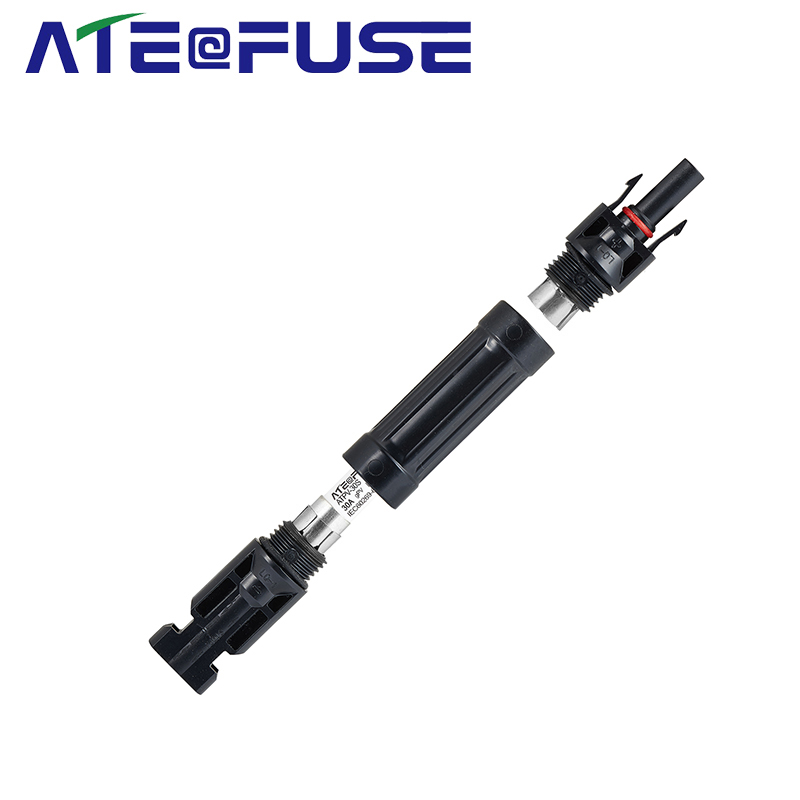

1000V/1500V PV CONNECTOR WITH FUSE LINK 10x38

Our high-quality pv connectors are extremely easy to handle, quick to install and minimise the risk of plant downtimes many times over and thereby save money in the long term. Put your faith in an experienced partner and proven quality for even the smallest components in your plant.

Features & Benefits

Proven SNAP IN technology
No crimp contacts and tools required
Fast and easy installation without assembly errors
Designed for voltages up to 1,500 Volt
TÜV-tested and approved according to IEC 62852

Inquiry Download

Share to

Product Details

PV BRANCH CONNECGTOR WITH FUSE

Connector system	MC4
Rated current	1A ~ 30A
Rated voltage	1000V/1500V DC (IEC)
Ambient temperature range	-40°C...+90°C (IEC)
Degree of protection, mated	IP65/IP67
unmated	IP2X
Contact resistance of plug connectors	0,5mΩ
Contact material	Copper, tin plated
Insulation material	TPE / PPO
Locking system plug connectors	Snap-in (nur/only MC4)
Flame class	UL94-HB / UL94-V0
Safety class	II
